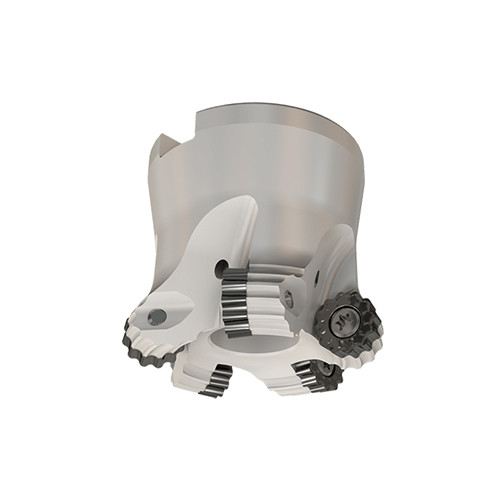

FRW D337A400-7-1.50-16
Indexable Face Mill; 4″ Dia. × 1-1/2″ Shank Dia. × 2″ OAL × 0.315″ LOC ; 7 Inserts

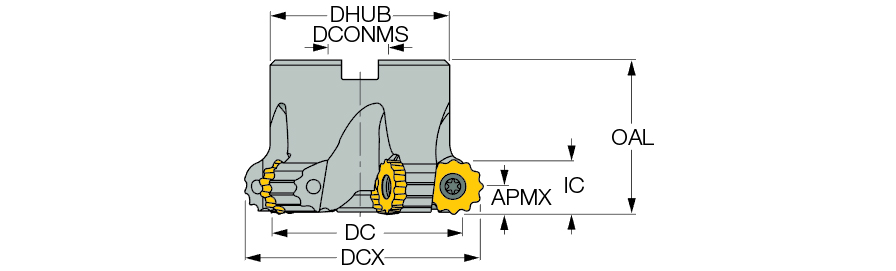

| Cutting Diameter (DC/DCX) | 4″ | Arbor Style | B |
| Cutting Diameter (DC) | 3.37″ | Master Insert Identification (MIID) | RCMT 1607MO |
| Cutting Diameter Maximum (DCX) | 4″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 7 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.315″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Application | | Facing | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | |
| Overall Length (OAL) | 2″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 3.15″ | Tool Type | Round corner cutters |
Product Features
| Family Description | MILLSHRED - Face mills carrying round inserts with serrated cutting edges or regular round inserts. Used for rough machining applications on small dies and low power machines. | Country of Origin | Israel |
Shipping Info
Package Weight
3.190
