HOF D2.50-05-1.00-R06
Indexable Face Mill; 2.87″ Dia. × 1″ Shank Dia. × 1.77″ OAL × 0.216″ LOC ; 5 Inserts ; 42 Degrees
| Cutting Diameter (DC/DCX) | 2.87″ | Master Insert Identification (MIID) | OEMT 060405AER-76 |
| Cutting Diameter (DC) | 2-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 2.87″ | Body Material | Steel |
| Cutting Item Count (CICT) | 5 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.1″ | Application | | Facing | Helical Interpolation | Profiling | Rampdown | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Overall Length (OAL) | 1-3/4″ | Tool Cutting Edge Angle (KAPR) | 42 Degrees |
| Hub Diameter (DHUB) | 2.36″ | Tool Type | 45° Facemills |
| Arbor Style | A |
Product Features
| Family Description | Face mills carrying octagonal or square or round inserts. | Country of Origin | Israel |

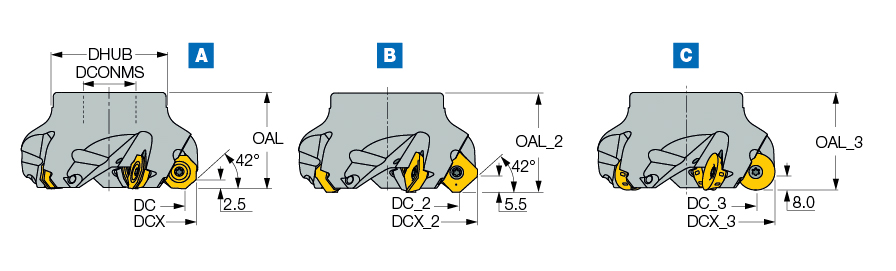

| Remarks | A - with OEM. 060405... insert B - with SECT/SEMT 1404... insert C - with REM. 1505... round insert |
Shipping Info
Package Weight
1.801
