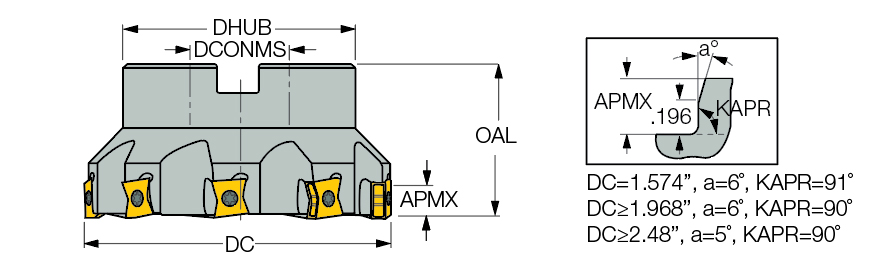

F90LN D2.50-09-1.00-R-N11
| Cutting Diameter (DC/DCX) | 2-1/2″ | Master Insert Identification (MIID) | LNHT 1106PN-N HT |
| Cutting Diameter (DC) | 2-1/2″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 9 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.394″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ | Application | | Facing | Shouldering | Slotting | |
| Overall Length (OAL) | 1-3/4″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 2.36″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | B | Tool Type | 90° Facemills |
Product Features
| Family Description | 90° face mills carrying LN..1106... tangentially clamped inserts. | Country of Origin | Israel |
| Remarks | For profile of machined wall, click on "More Info". |
Shipping Info
Package Weight
6.294
