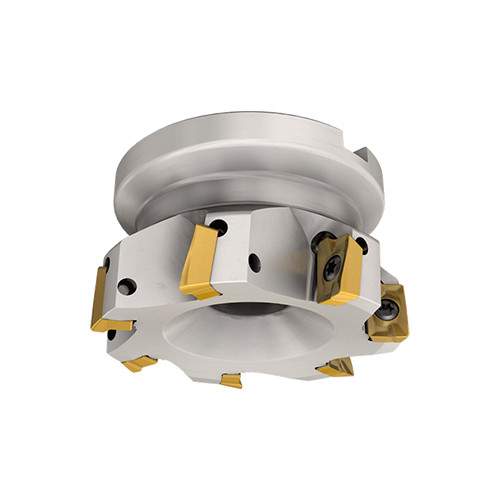

HM90 F90A D2.50-6-1.00
Indexable Face Mill; 2-1/2″ Dia. × 1″ Shank Dia. × 1-3/4″ OAL × 0.56″ LOC ; 6 Inserts ; 90 Degrees

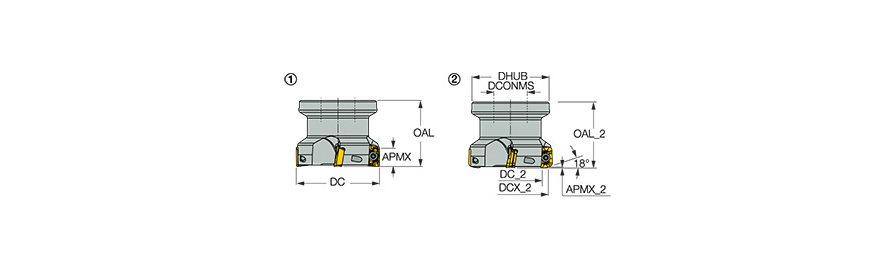

| Cutting Diameter (DC/DCX) | 2-1/2″ | Master Insert Identification (MIID) | ADKT 1505PDTR |
| Cutting Diameter (DC) | 2-1/2″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 2-1/2″ | Body Material | Steel |
| Cutting Item Count (CICT) | 6 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.56″ | Application | | Counter Boring | Facing | Fast Feed Milling | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Overall Length (OAL) | 1-3/4″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 2.33″ | Tool Type | 90° Facemills |
| Arbor Style | A |
Product Features
| Family Description | HELI2000, 90° face mills carrying HM90 ADKT 1505... inserts. | Country of Origin | Germany |
| Remarks | 1- with standard square insert 2- with FF (fast feed) insert For user guide, see pages For adaptation, click on More Info |
Shipping Info
Package Weight
1.700
