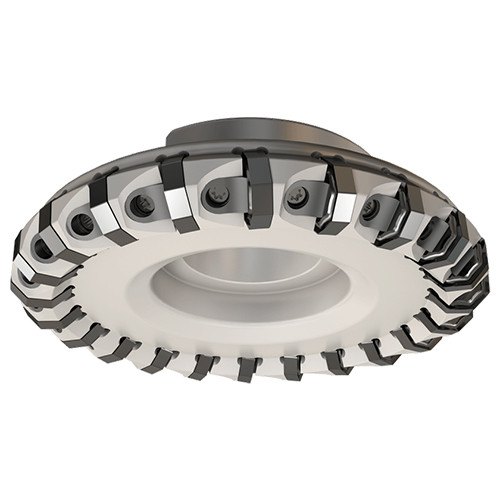

F45WG D4.0-14-1.5-FX-R08
Indexable Face Mill; 4.47″ Dia. × 1-1/2″ Shank Dia. × 2″ OAL × 0.22″ LOC ; 14 Inserts ; 44.3 Degrees

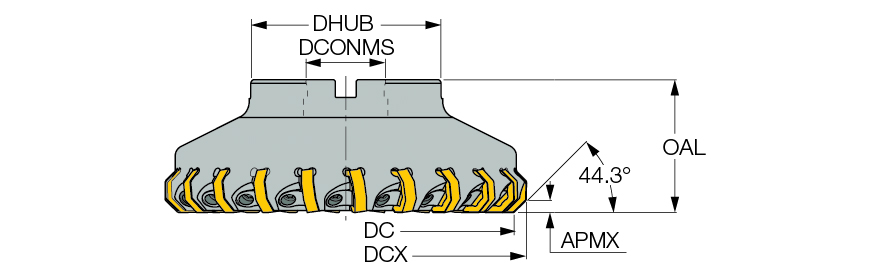

| Cutting Diameter (DC/DCX) | 4.47″ | Master Insert Identification (MIID) | ONHU 080608-TN |
| Cutting Diameter (DC) | 4″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 4.47″ | Body Material | Steel |
| Cutting Item Count (CICT) | 14 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.22″ | Application | | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Measurement Type | Inch |
| Overall Length (OAL) | 2″ | Tool Cutting Edge Angle (KAPR) | 44.3 Degrees |
| Hub Diameter (DHUB) | 3.27″ | Tool Type | 45° Facemills |
| Arbor Style | B |
Product Features
| Family Description | Wedge lock 45° face mills, carrying Octagonal ONHU/MU0806... inserts with 16 cutting edges. Feature high table speed. | Country of Origin | Israel |
| Remarks | Note: Recommended wedge clamping torque: 75-80 lbfxinch |
Shipping Info
Package Weight
4.519
