S845 F45SX D2.0-5-.75-R16
Indexable Face Mill; 2.55″ Dia. × 3/4″ Shank Dia. × 1-3/4″ OAL × 0.276″ LOC ; 5 Inserts ; 45 Degrees

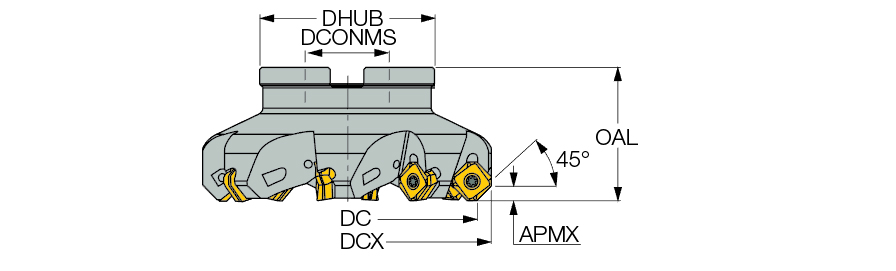

| Cutting Diameter (DC/DCX) | 2.55″ | Master Insert Identification (MIID) | S845 SXMU 1606ADTR |
| Cutting Diameter (DC) | 2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 2.55″ | Body Material | Steel |
| Cutting Item Count (CICT) | 5 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.276″ | Application | | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Measurement Type | Inch |
| Overall Length (OAL) | 1-3/4″ | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Hub Diameter (DHUB) | 1.93″ | Tool Type | 45° Facemills |
| Arbor Style | A |
Product Features
| Family Description | 45° face mills, featuring very rigid clamping, carrying inserts with 8 helical, right-hand cutting edges, providing a very economical solution (HELIDO845). | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. Wiper inserts are used on face mill cutters, provide improved surface finish, eliminate the use of ot her finishing cutters. |
Shipping Info
Package Weight
1.431
