FF FWX D1.50-04-0.50-07
Indexable Face Mill; 1-1/2″ Dia. × 1/2″ Shank Dia. × 1-1/4″ OAL × 0.059″ LOC ; 4 Inserts ; 17 Degrees

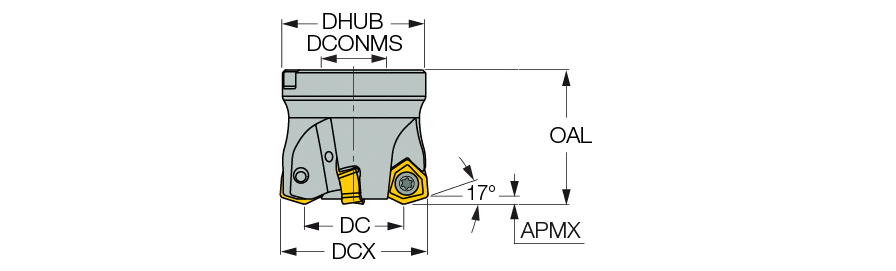

| Cutting Diameter (DC/DCX) | 1-1/2″ | Master Insert Identification (MIID) | H600 WXCU 070515HP |
| Cutting Diameter (DC) | 0.99″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 1-1/2″ | Body Material | Steel |
| Cutting Item Count (CICT) | 4 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.059″ | Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Measurement Type | Inch |
| Overall Length (OAL) | 1-1/4″ | Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Hub Diameter (DHUB) | 1.378″ | Tool Type | Fast Feed Face mill |
| Arbor Style | A |
Product Features
| Family Description | Fast feed face mills carrying double-sided Inserts with 6 cutting edges (HELIDO UPFEED LINE). | Country of Origin | Israel |
| Remarks | For machining recommendations, radius for programming and adaptation click on More Info To generate a straight surface without cusps, the width of cut must not exceed DC |
Shipping Info
Package Weight
0.551
