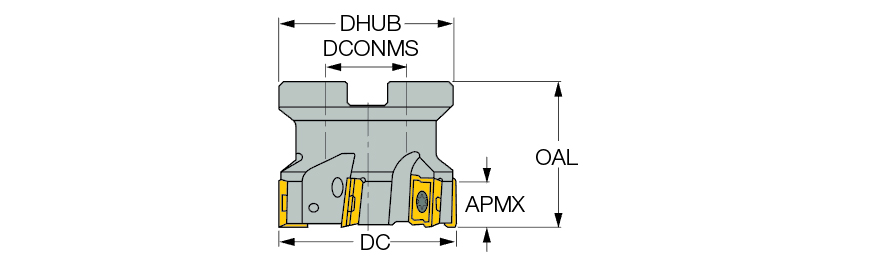

3M F90AX D6.00-10-2.00-20
| Cutting Diameter (DC/DCX) | 6″ | Master Insert Identification (MIID) | HP ADCT 2207PDR |
| Cutting Diameter (DC) | 6″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 10 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.79″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 2″ | Application | | Counter Boring | Facing | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 2-1/2″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 2.48″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | B | Tool Type | 90° Facemills |
Product Features
| Family Description | Heavy duty 90° face mills carrying 3M AXKT 206.. inserts with dovetail section shape, helical cutting edges and positive rake angle. Enable a secure clamping and high durability in rough applications. | Country of Origin | Israel |
| Remarks | To substantially increase insert life, reduce feed by 50% during engagement and removal from the workpiece. |
Shipping Info
Package Weight
9.0450
