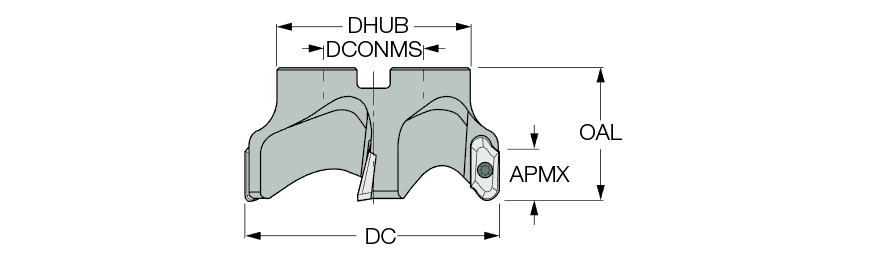

| Cutting Diameter (DC/DCX) | 2-1/2″ | Master Insert Identification (MIID) | HM90 APCR 2206 |
| Cutting Diameter (DC) | 2-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 3 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.866″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ | Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 2″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 2.36″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |

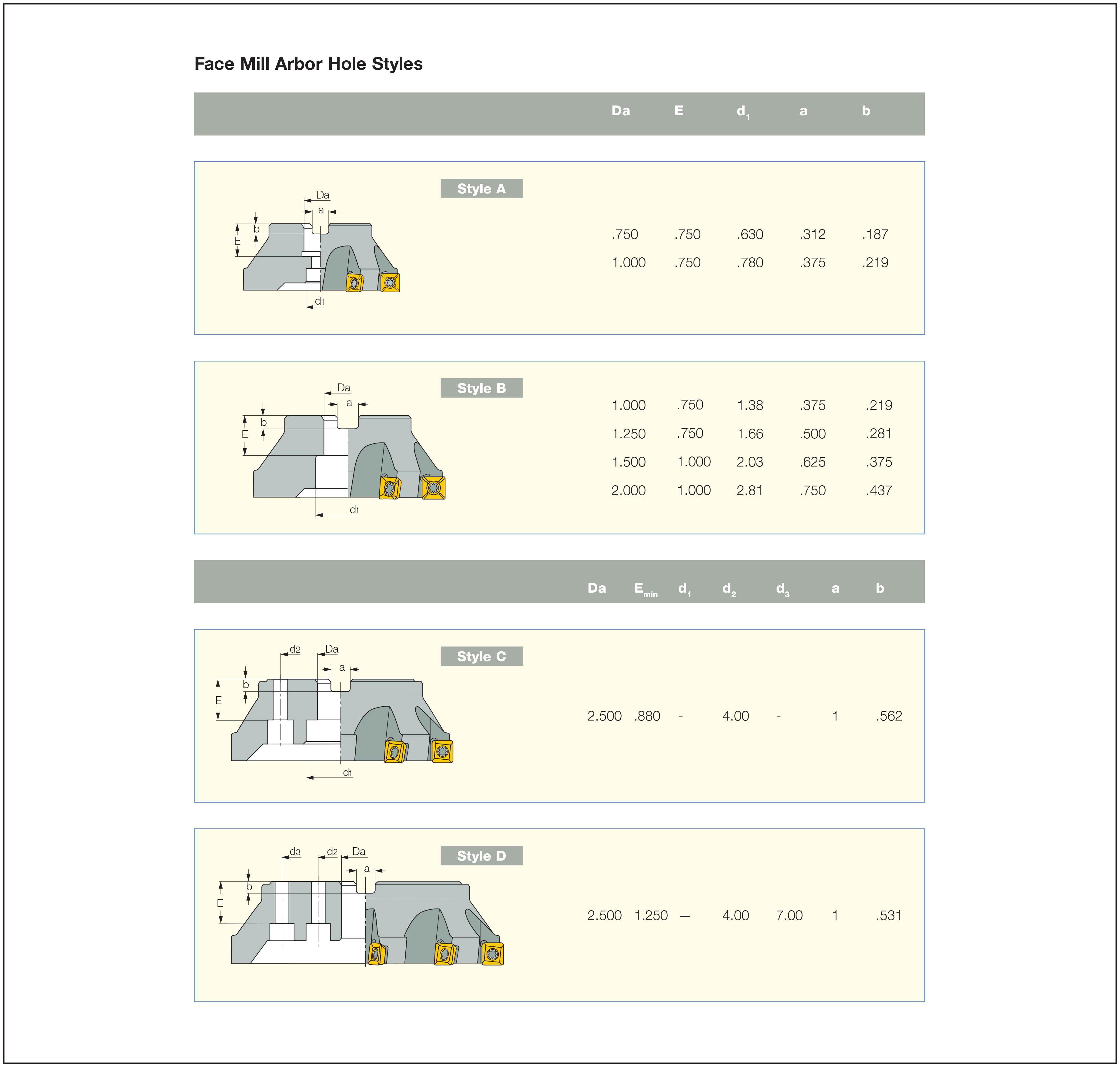

| Arbor Style | A | Tool Type | 90° Facemills for Al. & HTA |
Product Features

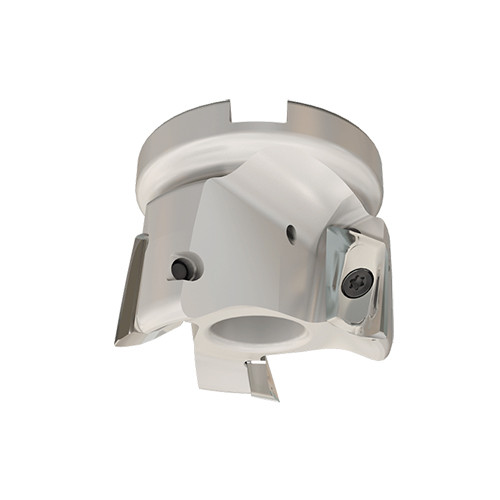

| Family Description | Face mills carrying HM90 APCR 2206... inserts for machining aluminum. | Country of Origin | Israel |
| Remarks | D.O.C. changes according to insert radius APMX .807 is the value for HM90 APCR220650 Insert tightening torque: 53 lbfxin When using this cutter with a .252 radius insert, the seat must be changed to assure the insert's compatibility with the tool |
Shipping Info
LocalField10
0
Package Weight
1.455
