HOF D6.0-9-2.00-R07

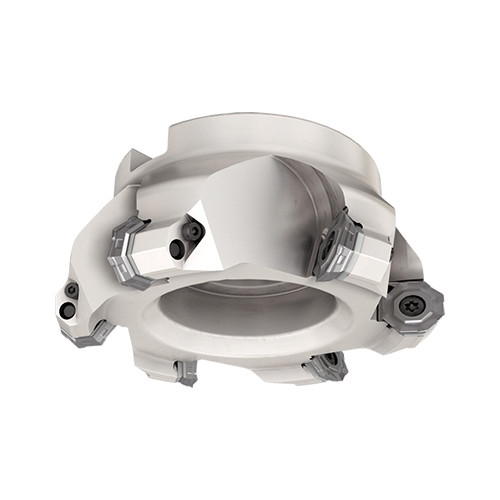

Indexable Face Mill; 6.49″ Dia. × 2″ Shank Dia. × 2.02″ OAL × 0.18″ LOC ; 9 Inserts ; 42 Degrees

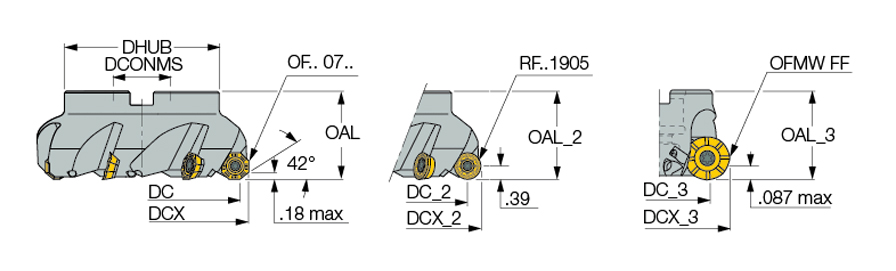

| Cutting Diameter (DC/DCX) | 6.49″ | Master Insert Identification (MIID) | OFMT 07T3-AETN |
| Cutting Diameter (DC) | 6″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 6.49″ | Body Material | Steel |
| Cutting Item Count (CICT) | 9 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.18″ | Application | | Facing | Fast Feed Milling | Helical Interpolation | Profiling | Rampdown | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 2″ | Measurement Type | Inch |
| Overall Length (OAL) | 2″ | Tool Cutting Edge Angle (KAPR) | 42 Degrees |
| Hub Diameter (DHUB) | 3.937″ | Tool Type | 45° Facemills |
| Arbor Style | B |
Product Features
| Family Description | Face mills carrying octagonal round and fast feed segmented radius inserts. | Country of Origin | Israel |
| Remarks | Helical interpolation is applicable up to and including 4.0 diameter. For adaptation click on More Info. |
Shipping Info
Package Weight
7.602
