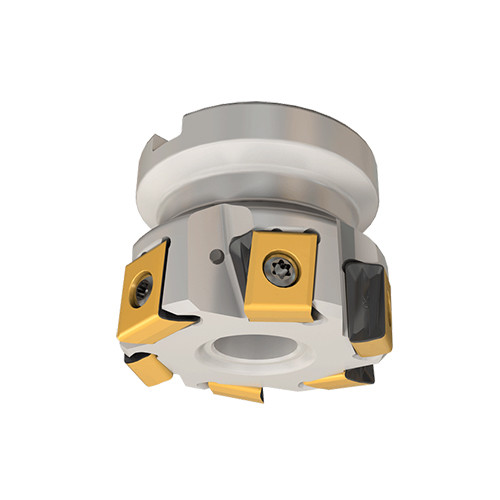

T490 FLN D2.50-8-1.0-R-13
Indexable Face Mill; 2-1/2″ Dia. × 1″ Shank Dia. × 1-3/4″ OAL × 0.492″ LOC ; 8 Inserts ; 90 Degrees

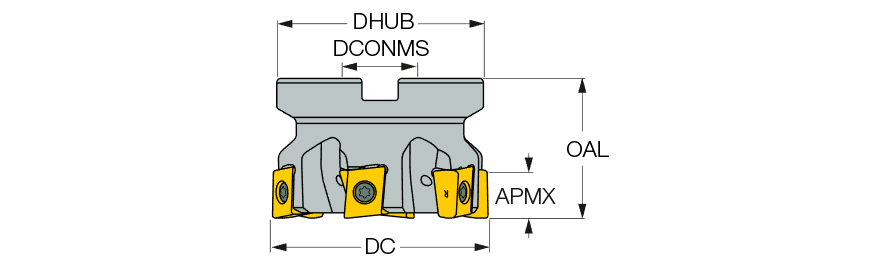

| Cutting Diameter (DC/DCX) | 2-1/2″ | Master Insert Identification (MIID) | T490 LNHT 130612PNTR |
| Cutting Diameter (DC) | 2-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 8 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.492″ | Cutting Direction (HAND) | Right Hand |

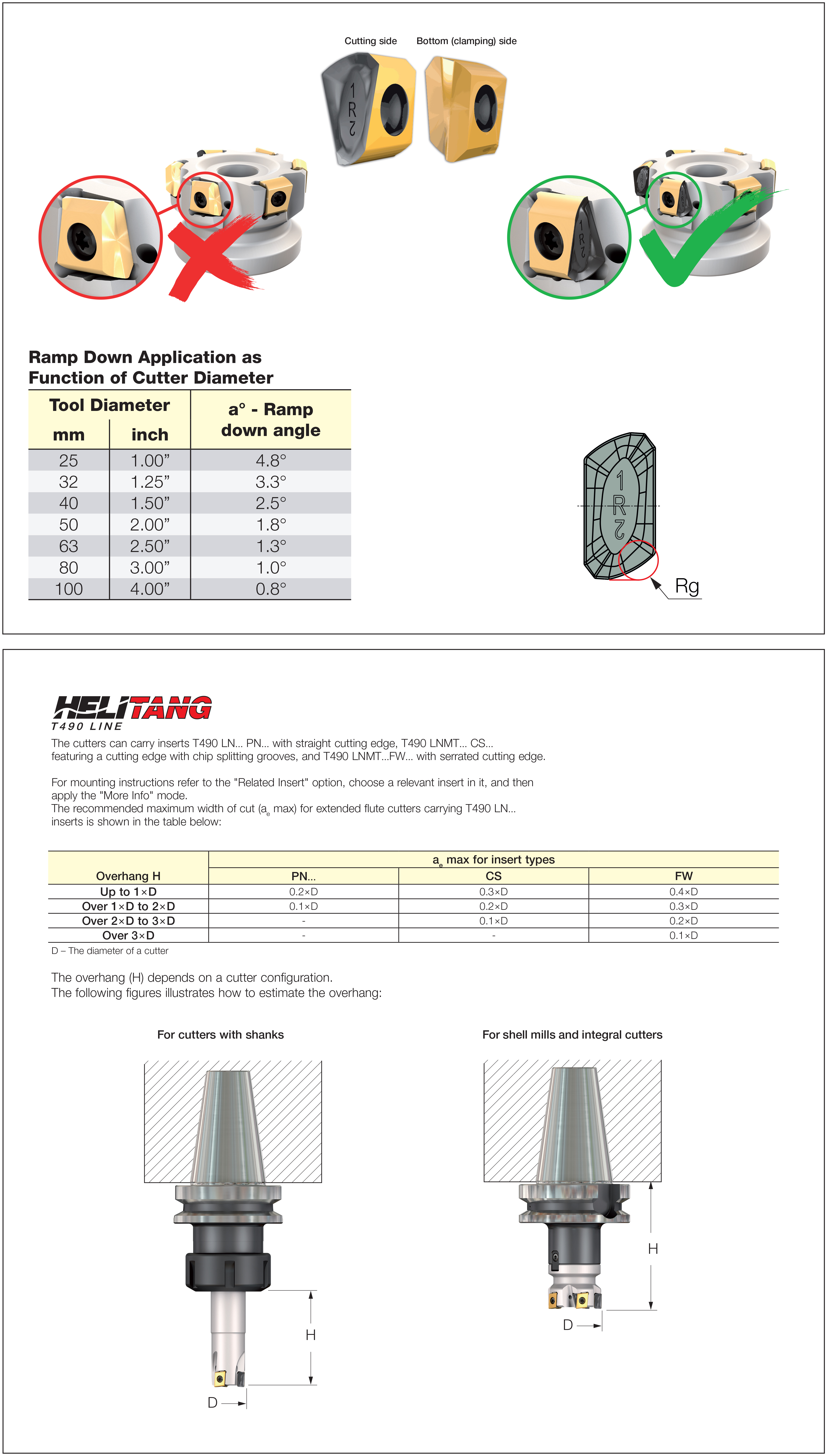

| Connection Diameter Machine Side (DCONMS) | 1″ | Application | | Facing | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 1-3/4″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 2.36″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills |
Product Features
| Family Description | HELITANG T490 Line, 90° face mills using T490 LNMT/LNHT 13... tangentially clamped inserts with 4 long helical cutting edges. | Country of Origin | Israel |
| Remarks | When machining slots, coarse pitch cutters should be used |
Shipping Info
Package Weight
1.726
