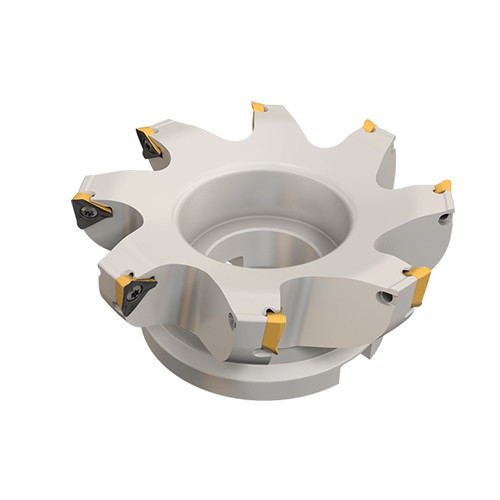

HM390 FTD D6.00-8-2.0-15
Indexable Face Mill; 6″ Dia. × 2″ Shank Dia. × 2-1/2″ OAL × 0.512″ LOC ; 8 Inserts ; 90 Degrees

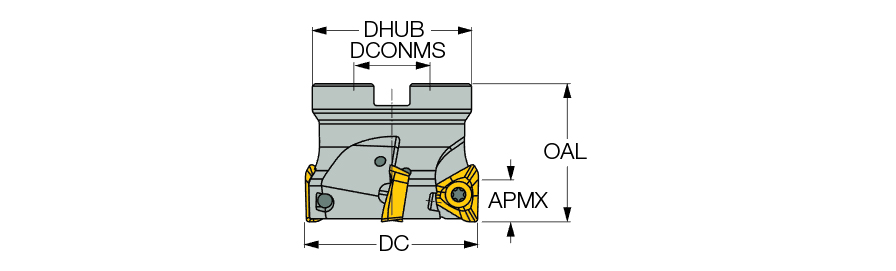

| Cutting Diameter (DC/DCX) | 6″ | Master Insert Identification (MIID) | HM390 TDKT 1505PDR |
| Cutting Diameter (DC) | 6″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 8 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.512″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 2″ | Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 2-1/2″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 4.33″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | B | Tool Type | 90° Facemills |
Product Features
| Family Description | 90° face mills carrying HM390 TDKT 1505 triangular inserts with 3 helical cutting edges. | Country of Origin | Israel |
| Remarks | When assembled the HM390 TDKT 1505PDR-FW insert, tool diameter enlarges by .04 |
Shipping Info
Package Weight
7.83
