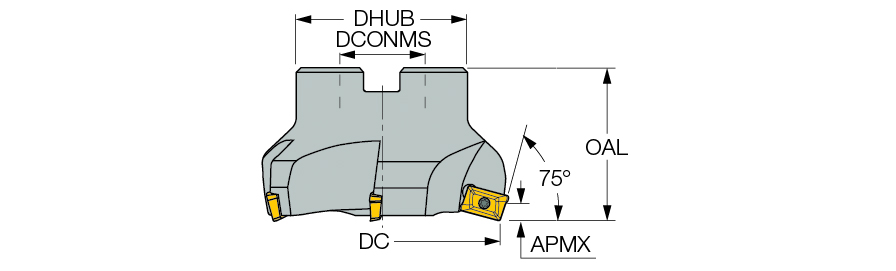

F75AP D3.00-1.00

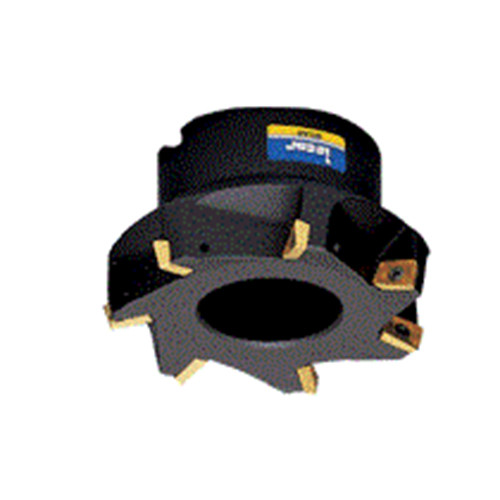

Indexable Face Mill; 3″ Dia. × 1″ Shank Dia. × 1-3/4″ OAL × 0.16″ Max Depth ; 7 Inserts ; 75 Degrees
| Cutting Diameter (DC/DCX) | 3″ | Master Insert Identification (MIID) | APCT 100302R-HM |
| Cutting Diameter (DC) | 3″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 7 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.16″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ | Application | | Facing | Slanted Shoulder & Chamfer | |
| Overall Length (OAL) | 1-3/4″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 2.13″ | Tool Cutting Edge Angle (KAPR) | 75 Degrees |
| Arbor Style | B | Tool Type | 70°-75° Facemills |
Product Features
| Family Description | HELIMILL, 75° face mills with AP..-1003... inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
1.764
