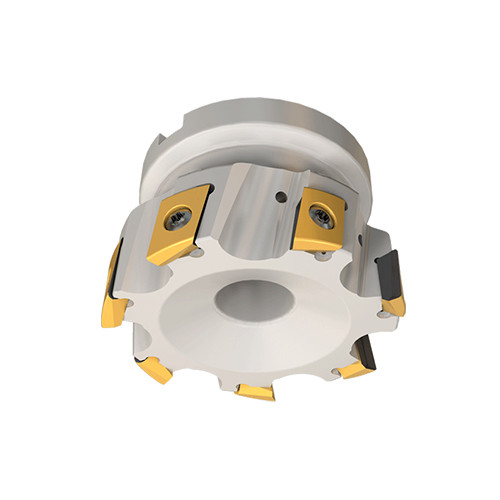

T290 FLN D3.00-07-1.0-15
Indexable Face Mill; 3″ Dia. × 1″ Shank Dia. × 2″ OAL × 0.551″ LOC ; 7 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 3″ | Master Insert Identification (MIID) | T290 LNMT 150608TR |
| Cutting Diameter (DC) | 3″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 7 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.551″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ | Application | | Facing | Shouldering | Slotting | |
| Overall Length (OAL) | 2″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 2.6″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | B | Tool Type | 90° Facemills |
Product Features
| Family Description | 90° face mills carrying tangentially clamped, T290 LNMT 1506... inserts with 2 helical cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
2.595
