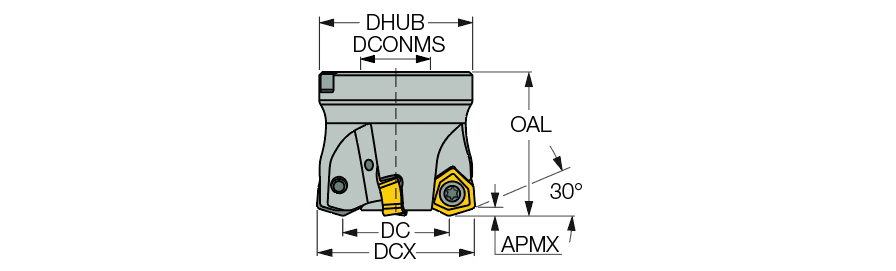

MF FWX D5.00-09-1.50-08
Indexable Face Mill; 5″ Dia. × 1-1/2″ Shank Dia. × 2″ OAL × 0.138″ LOC ; 9 Inserts ; 30 Degrees
| Cutting Diameter (DC/DCX) | 5″ | Master Insert Identification (MIID) | H600 WXCU 080612T |
| Cutting Diameter (DC) | 4.398″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 5″ | Body Material | Steel |
| Cutting Item Count (CICT) | 9 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.138″ | Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Measurement Type | Inch |
| Overall Length (OAL) | 2″ | Tool Cutting Edge Angle (KAPR) | 30 Degrees |
| Hub Diameter (DHUB) | 3-1/2″ | Tool Type | Fast Feed Face mill |
| Arbor Style | B |
Product Features
| Family Description | HELIDO UPFEED H600 LINE - Moderate feed face mills carrying double-sided inserts with 6 cutting edges. | Country of Origin | Israel |
| Remarks | For machining recommendations, radius for programming and adaptation click on More Info To generate a straight surface without cusps, the width of cut must not exceed DC |
Shipping Info
Package Weight
5.395
