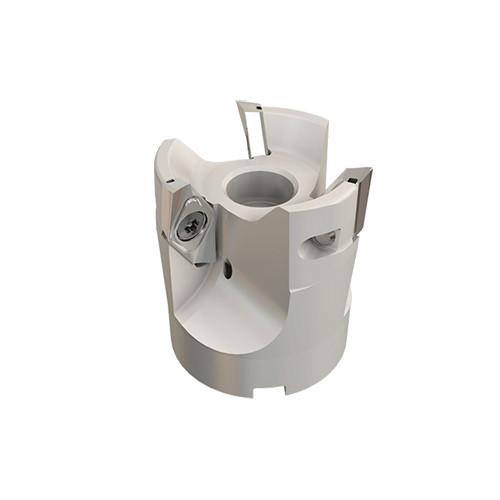

HSM90S FAL-D2.0-2-.75-14
Indexable Face Mill; 2″ Dia. × 3/4″ Shank Dia. × 2-1/4″ OAL × 0.531″ LOC ; 2 Inserts ; 90 Degrees

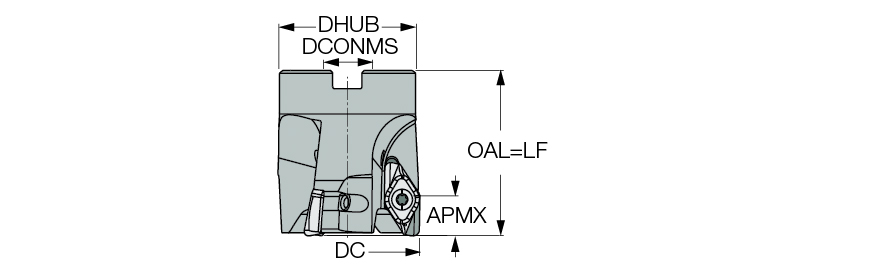

| Cutting Diameter (DC/DCX) | 2″ | Master Insert Identification (MIID) | HSM90S APCR 140508R-P |
| Cutting Diameter (DC) | 2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 2 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.531″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 2-1/4″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 1.88″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills for Al. & HTA |
Product Features
| Family Description | 90° face mills carrying HSM90S APCR 1405... inserts for machining aluminum at high rotation speeds. A special pocket design improves its resistance to centrifugal forces | Country of Origin | Israel |

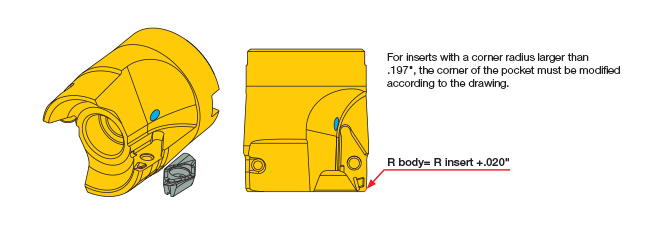

| Remarks | When machining at very high cutting speeds (RPM>15000) and replacing the insert, it is also recommended to replace the screw For inserts with a corner radius larger than .2, tools must be modified by rounding the corners of the tool body according to the formula: R body's corner = R insert + .02 For adaptation, click on More Info |
Shipping Info
Package Weight
1.451
