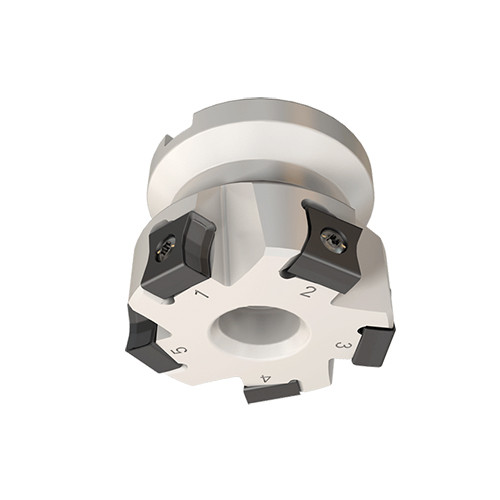

F90LN D2.00-07-.75-R-N11
Indexable Face Mill; 2″ Dia. × 3/4″ Shank Dia. × 1.57″ OAL × 0.394″ LOC ; 7 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 2″ | Master Insert Identification (MIID) | LNHT 1106PN-N HT |
| Cutting Diameter (DC) | 2″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 7 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.394″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Application | | Facing | Shouldering | Slotting | |
| Overall Length (OAL) | 1.57″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 1.85″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills |
Product Features
| Family Description | 90° face mills carrying LN..1106... tangentially clamped inserts | Country of Origin | Israel |
| Remarks | For profile of machined wall, click on More Info |
Shipping Info
Package Weight
1.179
