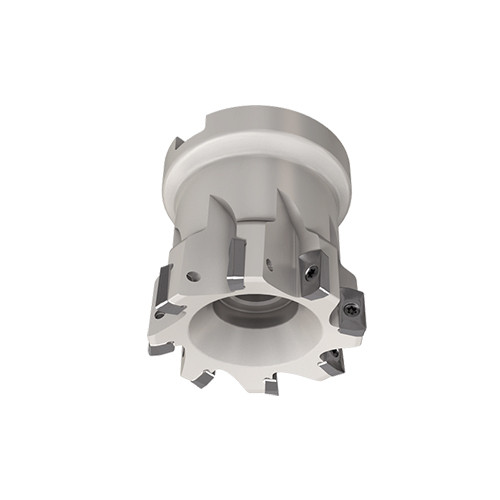

HP F90AN D2.5-12-1.0-07
Indexable Face Mill; 2-1/2″ Dia. × 1″ Shank Dia. × 1-3/4″ OAL × 0.303″ LOC ; 12 Inserts ; 90 Degrees

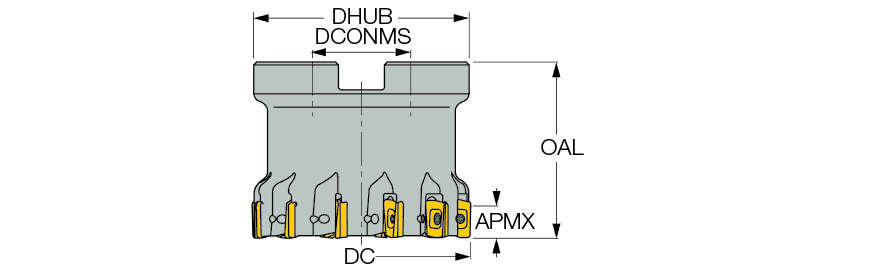

| Cutting Diameter (DC/DCX) | 2-1/2″ | Master Insert Identification (MIID) | HP ANKT 0702 PN-R |
| Cutting Diameter (DC) | 2-1/2″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 12 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.303″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ | Application | | Counter Boring | Facing | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 1-3/4″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 2.42″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | B | Tool Type | 90° Facemills |
Product Features
| Family Description | HELIPLUS, 90° fine pitch face mills carrying HP ANKT 0702.. inserts. | Country of Origin | Israel |
| Remarks | Insert tightening torque: 5.5 lbfxin |
Shipping Info
Package Weight
1.424
