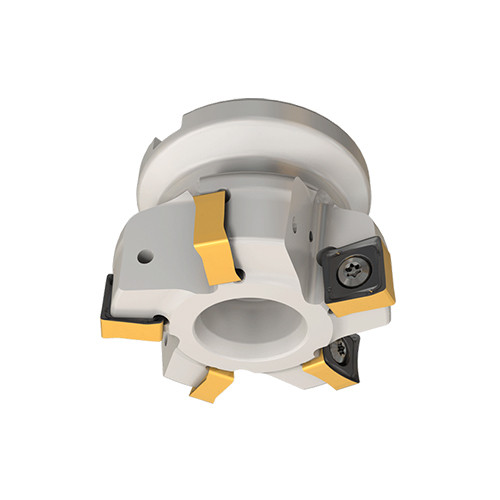

S890 FSN D3.0-07-1.00-R13
Indexable Face Mill; 2.862″ Dia. × 1″ Shank Dia. × 1-3/4″ OAL × 0.354″ LOC ; 7 Inserts ; 89 Degrees

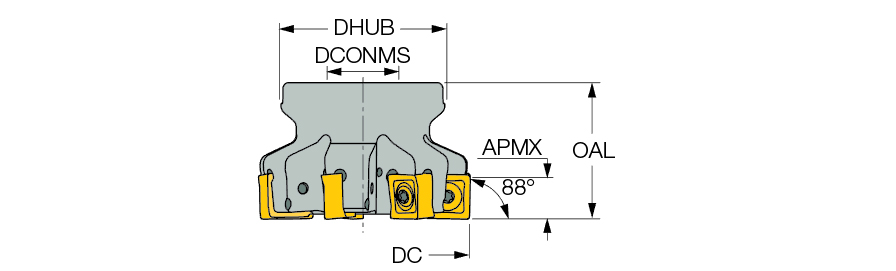

| Cutting Diameter (DC/DCX) | 2.862″ | Master Insert Identification (MIID) | S890 SNMU 1305PNR |
| Cutting Diameter (DC) | 3″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 2.862″ | Usable Length (LU) | 1.793″ |
| Cutting Item Count (CICT) | 7 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.354″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ | Application | | Facing | Shouldering | |
| Overall Length (OAL) | 1-3/4″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 2.22″ | Tool Cutting Edge Angle (KAPR) | 89 Degrees |
| Arbor Style | B | Tool Type | 90° Facemills |
Product Features
| Family Description | HELIDO, Face mills carrying inserts with 8 cutting edges. A very efficient solution for high metal removal of cast iron and steel components. The 88° lead angle minimizes burrs and edge chipping for cast iron applications. | Country of Origin | Israel |
| Remarks | Use only Torx Plus keys |
Shipping Info
Package Weight
1.408
