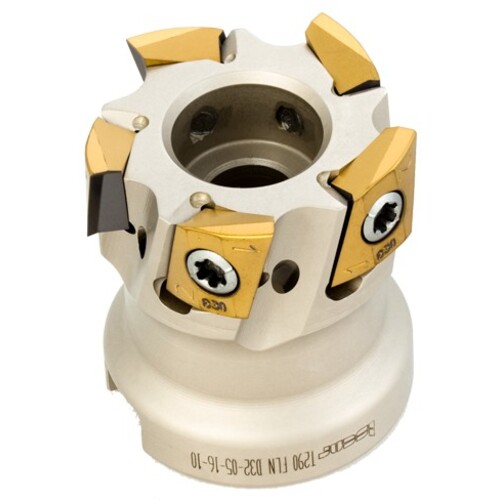

T290 FLN D1.25-05-.500*10
Indexable Face Mill; 1-1/4″ Dia. × 1/2″ Shank Dia. × 1.378″ OAL × 0.354″ Max Depth ; 5 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1-1/4″ | Master Insert Identification (MIID) | T290 LNHT 100405TR |
| Cutting Diameter (DC) | 1-1/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 5 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.354″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Application | | Facing | Shouldering | Slotting | |
| Overall Length (OAL) | 1.378″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 1.1″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills |
Product Features
| Family Description | SUMOMILL, 90° face mills with tangentially clamped, T290 LNMT 1004... inserts with 2 helical cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
0.904
