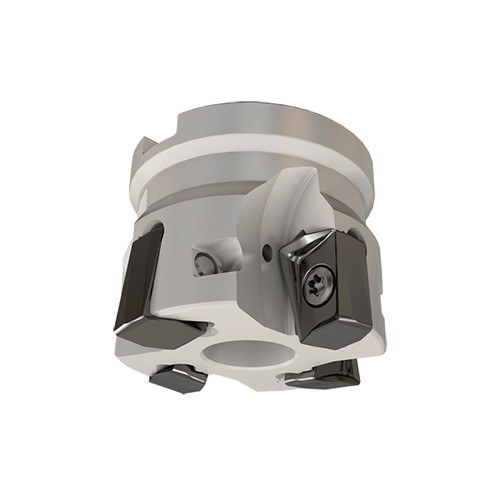

H490 F90AX D3.00-7-1.0-17
Indexable Face Mill; 3″ Dia. × 1″ Shank Dia. × 1.994″ OAL × 0.642″ LOC ; 7 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 3″ | Master Insert Identification (MIID) | H490 ANKX 170604PNTR |
| Cutting Diameter (DC) | 3″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 3″ | Body Material | Steel |
| Cutting Item Count (CICT) | 7 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.642″ | Application | | Facing | Rampdown | Shouldering | Side Plunging | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Overall Length (OAL) | 2″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 2.6″ | Tool Type | 90° Facemills |
| Arbor Style | A |
Product Features
| Family Description | 90° face mills carrying H490 ANKX 17.. double-sided rectangular inserts with 4 helical cutting edges (HELIDO 490 LINE). | Country of Origin | Israel |

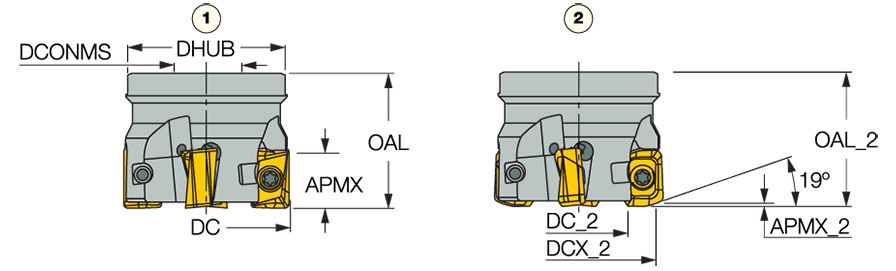

| Remarks | Ramping angle is valid only when the H490 ANKX 1706R15T-FF insert is used (tool diameter is then 0.060 larger) 1- with standard square insert 2- with FF (fast feed) insert |
Shipping Info
Package Weight
2.540
