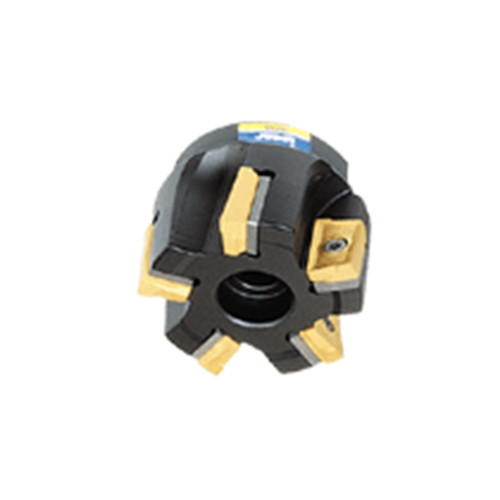

3M F90AX D2.00-6-.75-13
Indexable Face Mill; 2″ Dia. × 3/4″ Shank Dia. × 1.57″ OAL × 1/2″ LOC ; 6 Inserts ; 90 Degrees

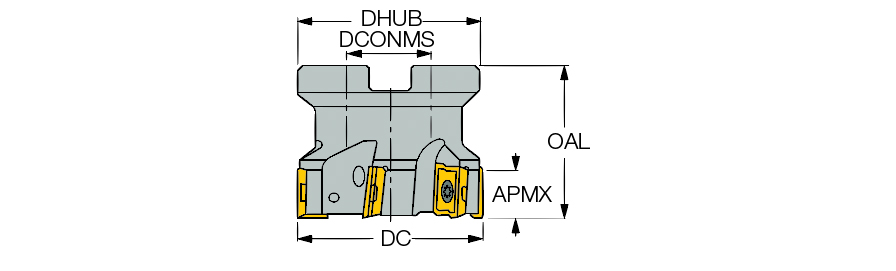

| Cutting Diameter (DC/DCX) | 2″ | Master Insert Identification (MIID) | 3M AXKT 1304PDR |
| Cutting Diameter (DC) | 2″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 6 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 1/2″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Application | | Facing | Shouldering | Slotting | |
| Overall Length (OAL) | 1.57″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 1.842″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills |
Product Features
| Family Description | MILL2000, Heavy duty 90° face mills with 3M AXKT 1304.. inserts with dovetail section shape, helical cutting edges and positive rake angle. Enable a secure clamping and high durability in rough applications. | Country of Origin | Israel |
| Remarks | Reduce feed by 50% during engagement and exit from the workpiece. This practice will substantially increase insert life. |
Shipping Info
Package Weight
1.089
