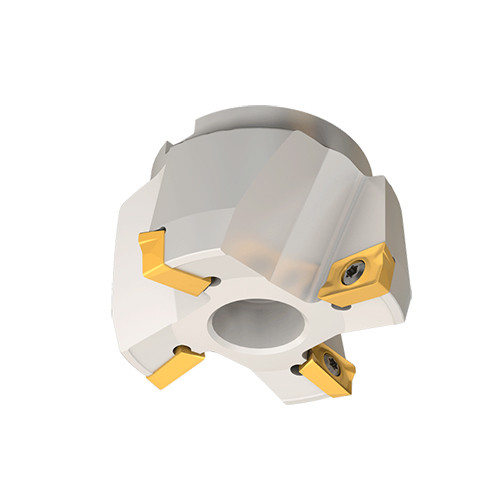

F75A D3.00-1.00-M
Indexable Face Mill; 3″ Dia. × 1″ Shank Dia. × 1-3/4″ OAL × 0.27″ LOC ; 5 Inserts ; 75 Degrees

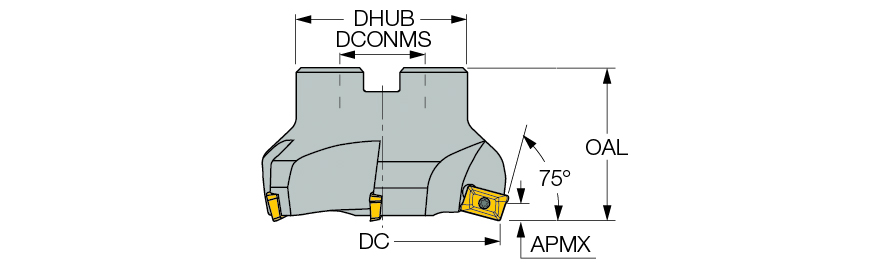

| Cutting Diameter (DC/DCX) | 3″ | Master Insert Identification (MIID) | ADCR 1505PDFR |
| Cutting Diameter (DC) | 3″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 5 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.27″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ | Application | | Facing | Slanted Shoulder & Chamfer | |
| Overall Length (OAL) | 1-3/4″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 2.17″ | Tool Cutting Edge Angle (KAPR) | 75 Degrees |
| Arbor Style | A | Tool Type | 70°-75° Facemills |
Product Features
| Family Description | HELIMILL, 75° face mills with AD..-1505... inserts. | Country of Origin | Israel |
| Remarks | Thinner insert ADM. 1503..mounted on TSP-15R seat. |
Shipping Info
Package Weight
2.187
