F45E D 3.0 -1.00

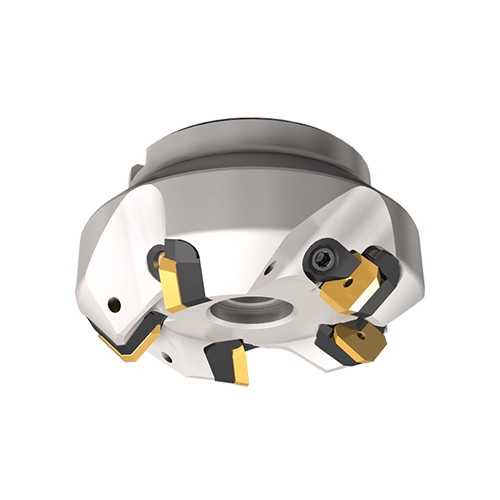

Indexable Face Mill; 3″ Dia. × 1″ Shank Dia. × 1-3/4″ OAL × 0.256″ LOC ; 6 Inserts ; 45 Degrees

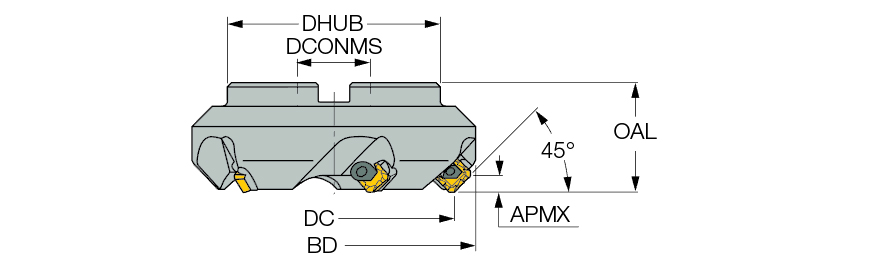

| Cutting Diameter (DC/DCX) | 3″ | Master Insert Identification (MIID) | SEKR 42AFN |
| Cutting Diameter (DC) | 3″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 6 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.256″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ | Application | | Facing | Plunging & Recessing | Slanted Shoulder & Chamfer | |
| Overall Length (OAL) | 1-3/4″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 2.48″ | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Arbor Style | B | Tool Type | 45° Facemills |
Product Features
| Family Description | 45° face mills carrying SEKN/R 12... inserts. | Country of Origin | Israel |
Shipping Info
Package Length
8.00000
Package Width
6.00000
Package Height
3.50000
Package Weight
1.565
