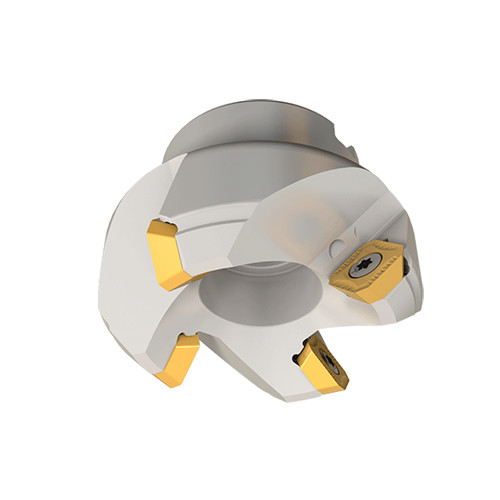

F45ST D6.00-2.00

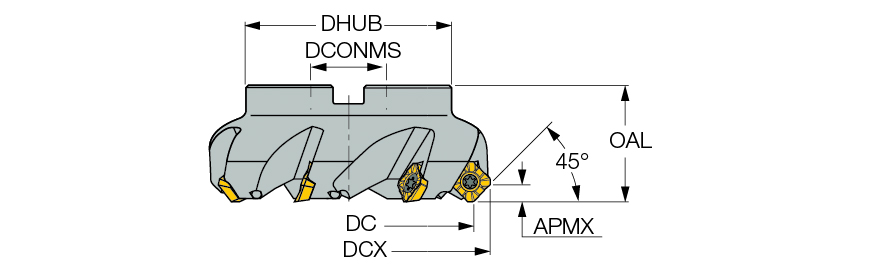

Indexable Face Mill; 6.44″ Dia. × 2″ Shank Dia. × 2″ OAL × 0.26″ LOC ; 8 Inserts ; 45 Degrees
| Cutting Diameter (DC/DCX) | 6.44″ | Master Insert Identification (MIID) | SEMT 1204AFTN-76 |
| Cutting Diameter (DC) | 6″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 6.44″ | Body Material | Steel |
| Cutting Item Count (CICT) | 8 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.26″ | Application | | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 2″ | Measurement Type | Inch |
| Overall Length (OAL) | 2″ | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Hub Diameter (DHUB) | 4.92″ | Tool Type | 45° Facemills |
| Arbor Style | B |
Product Features
| Family Description | 45° screw clamped face mills carrying SEK/MT 12... inserts. | Country of Origin | Israel |
| Remarks | SE..1204 inserts are directly mounted on the cutter SE..12T3 optional thinner inserts are mounted on a seat - TSE 12T3-N |
Shipping Info
Package Weight
8.993
