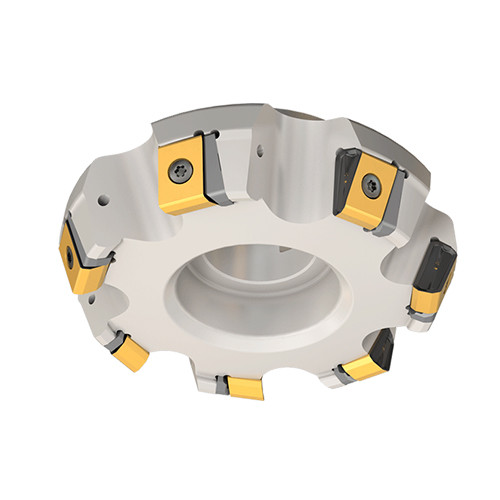

T465FLN D6.0-07-2.0R-22ST
Indexable Face Mill; 6.74″ Dia. × 2″ Shank Dia. × 2-1/2″ OAL × 3/4″ LOC ; 7 Inserts ; 65 Degrees

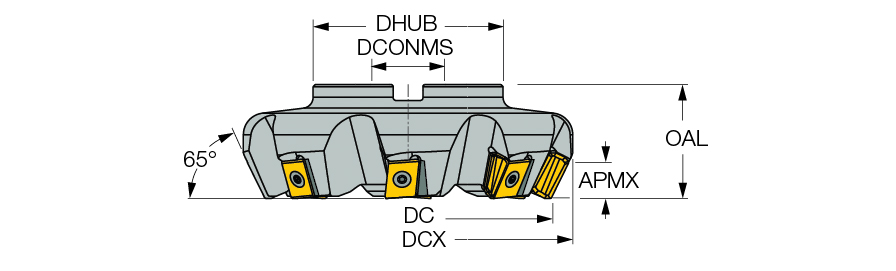

| Cutting Diameter (DC/DCX) | 6.74″ | Master Insert Identification (MIID) | T465 LNHT 2212-ZNTR |
| Cutting Diameter (DC) | 6″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 6.74″ | Body Material | Steel |
| Cutting Item Count (CICT) | 7 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 3/4″ | Application | | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 2″ | Measurement Type | Inch |
| Overall Length (OAL) | 2-1/2″ | Tool Cutting Edge Angle (KAPR) | 65 Degrees |
| Hub Diameter (DHUB) | 4.72″ | Tool Type | 60°-65° Facemills |
| Arbor Style | B |
Product Features
| Family Description | HELITANG T465 Line, 65° face mills carrying tangentially clamped inserts with 4, .866″ long cutting edges. Used for machining large parts such as those found in marine industries, power generation and other heavy industry applications. | Country of Origin | Israel |
Shipping Info
Package Weight
13.159
