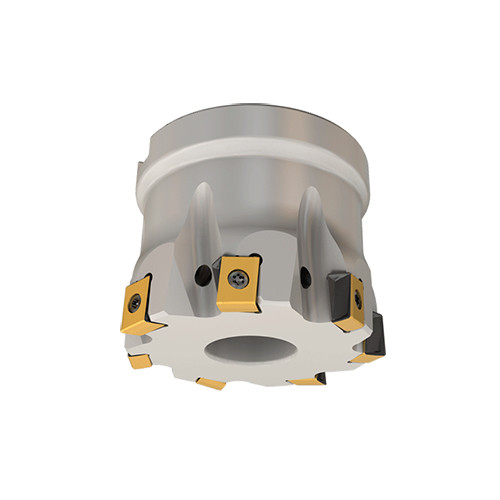

T490 FLN D1.50-4-.75-08
Indexable Face Mill; 1-1/2″ Dia. × 3/4″ Shank Dia. × 1.57″ OAL × 0.315″ LOC ; 4 Inserts ; 90 Degrees

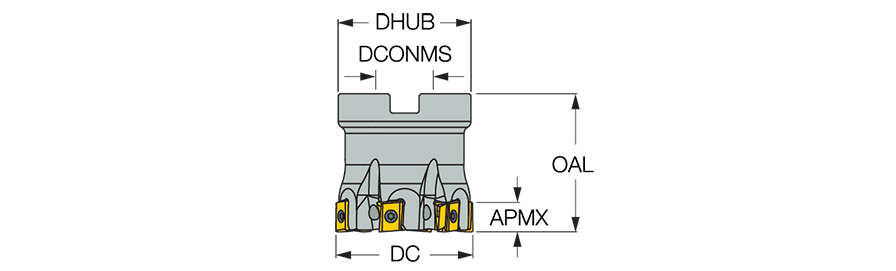

| Cutting Diameter (DC/DCX) | 1-1/2″ | Master Insert Identification (MIID) | T490 LNMT 0804PNR |
| Cutting Diameter (DC) | 1-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 4 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.315″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Application | | Facing | Shouldering | Slotting | |
| Overall Length (OAL) | 1.57″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 1.44″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills |
Product Features
| Family Description | HELITANG T490 Line, 90° face mills using T490 LNMT/LNHT 08... tangentially clamped inserts with 4 helical, .315″ long cutting edges. | Country of Origin | Israel |
| Remarks | When machining slots, regular pitch cutters should be used |
Shipping Info
Package Weight
0.696
