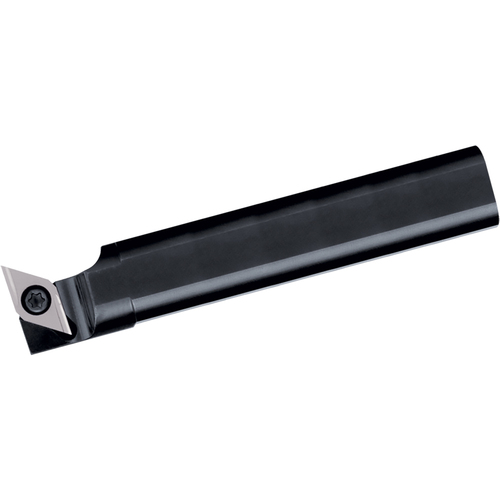

S15FSDUCL07 EXTL SLEEVE
| Shank Height (H) | 0.5906″ | Rake Angle Radial (GAMF) | 7 |
| Shank Width (B) | 0.5906″ | Cutting Depth Maximum (CDX) | 0.1496″ |
| Overall Length (OAL) | 3.3465″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Clamping System | Screw Clamp |
| Inscribed Circle Diameter (IC) | 1/4″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | DCGT215… | DCMX215… | DCMT215… | DCET215… | DCGW215… | DCMW215… | Series/List # | S…SDUC |
| Coolant Supply Property (CSP) | External |
Product Features
| Family Description | Alternate Manufacture # S15FSDUCL07 | Country of Origin | Japan |
Shipping Info
Package Weight
.2976
