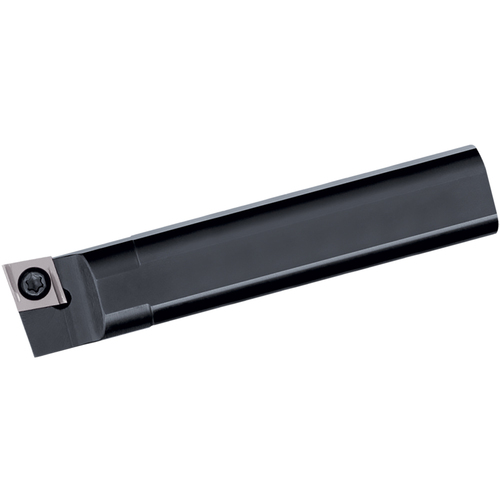

S14HSCLCL06 EXTL SLEEVE
| Shank Height (H) | 13 mm | Coolant Supply Property (CSP) | External |
| Shank Width (B) | 13 mm | Rake Angle Radial (GAMF) | 7 |
| Overall Length (OAL) | 100 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Clamping System | Screw Clamp |
| Inscribed Circle Diameter (IC) | 6.35 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | CCGT215… | CCMT215… | CCGW215… | CCMW215… | Series/List # | S…SCLC |
Product Features
| Family Description | Alternate Manufacture # S14HSCLCL06 | Country of Origin | Japan |
Shipping Info
Package Weight
.2778
