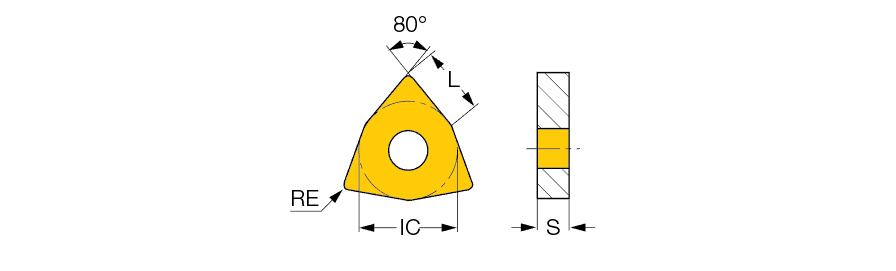

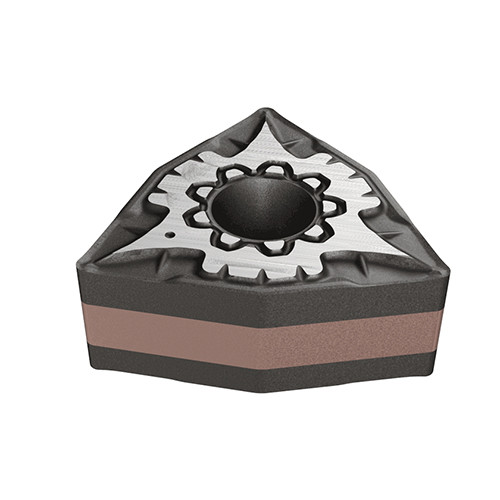

WNMG 432-F3M IC706
| Applicable Material | | Super-Alloys / Titanium | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 80° Trigon 95° Approach | Int. 80° Trigon 95° Approach | | Min D.O.C. | 0.004″ |
| Insert Style | WNMG | Depth of Cut Maximum (APMX) | 0.059″ |
| Corner Radius (RE) | 0.0315″ | Min. Turning Feed (ft(min)) | 0.00393 ″/rev |
| Insert Size | 432 | Max. Turning Feed (ft(max)) | 0.01574 ″/rev |
| Cutting Edge Length (L) | 0.343″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 0.187″ | Chip Breaker Type | F3M |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Grade | IC706 | Body Material | Carbide |
Product Features
| Family Description | Double-sided Trigon Inserts for stainless steel finishing applications. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
11.3
