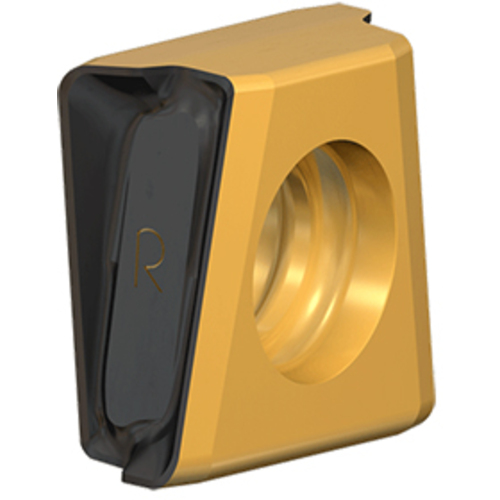

T490 LNHT 0502-PNTN IC808
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | IC808 |
| Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0047 ″/tooth |
| Insert Length (INSL) | 0.197″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.016″ | Tool Type | Mill Tangential Inserts |
| Depth of Cut Maximum (APMX) | 0.181″ | Minimum Feed per Tooth (fz(min)) | 0.0024 ″/tooth |
| Insert Width (W1) | 0.091″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.209″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 90 Degrees | Body Material | Carbide |
| Coating | TiAlN+AlTiN+TiN |
Product Features
| Family Description | HELITANG - Tangentially clamped inserts for slotting and precision grooving, the insert have 4 helical cutting edges (2 right- and 2 left-hand). | Country of Origin | Israel |
| Remarks | For cutting conditions click on More Info. |
Shipping Info
Package Weight
1.7
