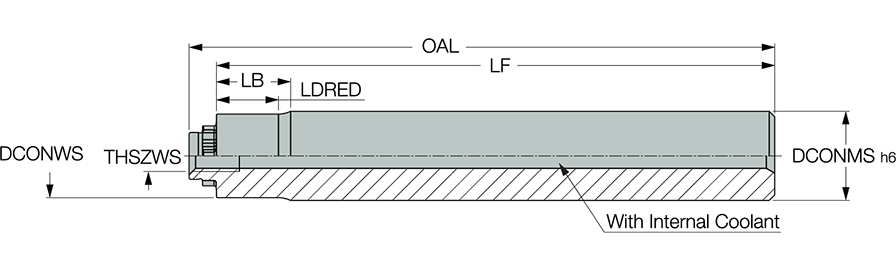

SD S-A-L090-C16-CH-SP15
| Connection Thread Nominal Size Workpiece Side (THSZWS) | M5x0.5 | Functional Length (LF) | 3.543″ |
| Connection Diameter Machine Side (DCONMS) | 0.63″ | Measurement Type | Inch |
| Overall Length (OAL) | 3.736″ | Body Material | Steel |
| Tool Type | Cylindrical Shanks | Connection Code Machine Side (CCMS) | Cylindrical |
| Body Diameter (BD) | 0.591″ | Reduced Body Diameter Length (LDRED) | 0.63″ |
| Body Length (LB) | 0.72″ |
Product Features
| Family Description | Stepped cylindrical shanks for interchangeable milling cutter heads. | Country of Origin | Israel |
| Remarks | Apply lubricant to the clamping screw |
Shipping Info
Package Weight
0.481
