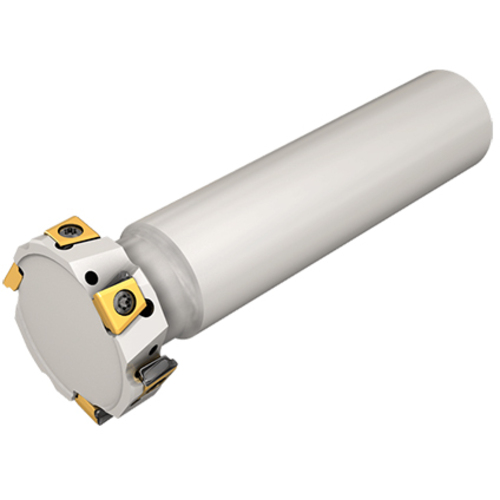

ETS D020-07-C12-T490-05

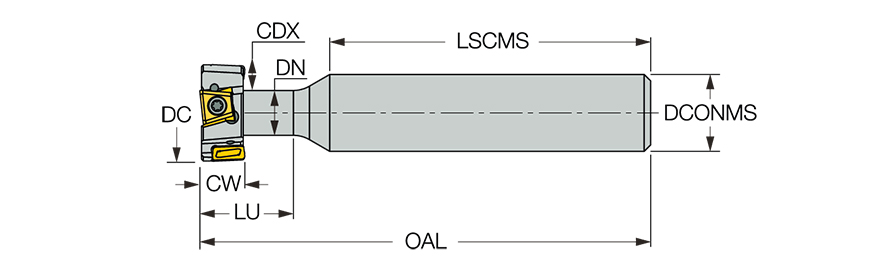

| Cutting Diameter (DC) | 0.776″ | Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | |
| Cutting Width (CW) | 0.276″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.177″ | Tool Type | Double-sided slotting cutters |
| Flute Count (NOF) | 4 | Body Material | Steel |
| Peripheral Effective Cutting Edge Count (ZEFP) | 2 | Cutting Item Count (CICT) | 4 |
| Connection Diameter Machine Side (DCONMS) | 0.472″ | Functional Length (LF) | 1.673″ |
| Overall Length (OAL) | 2.559″ | Master Insert Identification (MIID) | T490 LNHT 0502-PNTN |
| Usable Length (LU) | 0.5039″ | Connection Code Machine Side (CCMS) | Weldon |
| Shank Type | Round | Neck Diameter (DN) | 0.394″ |
Product Features
| Family Description | T-SLOT endmills sloting cutters carrying T490 0502 PNTN inserts with 2 right- and 2 left-hand cutting edges | Country of Origin | Israel |

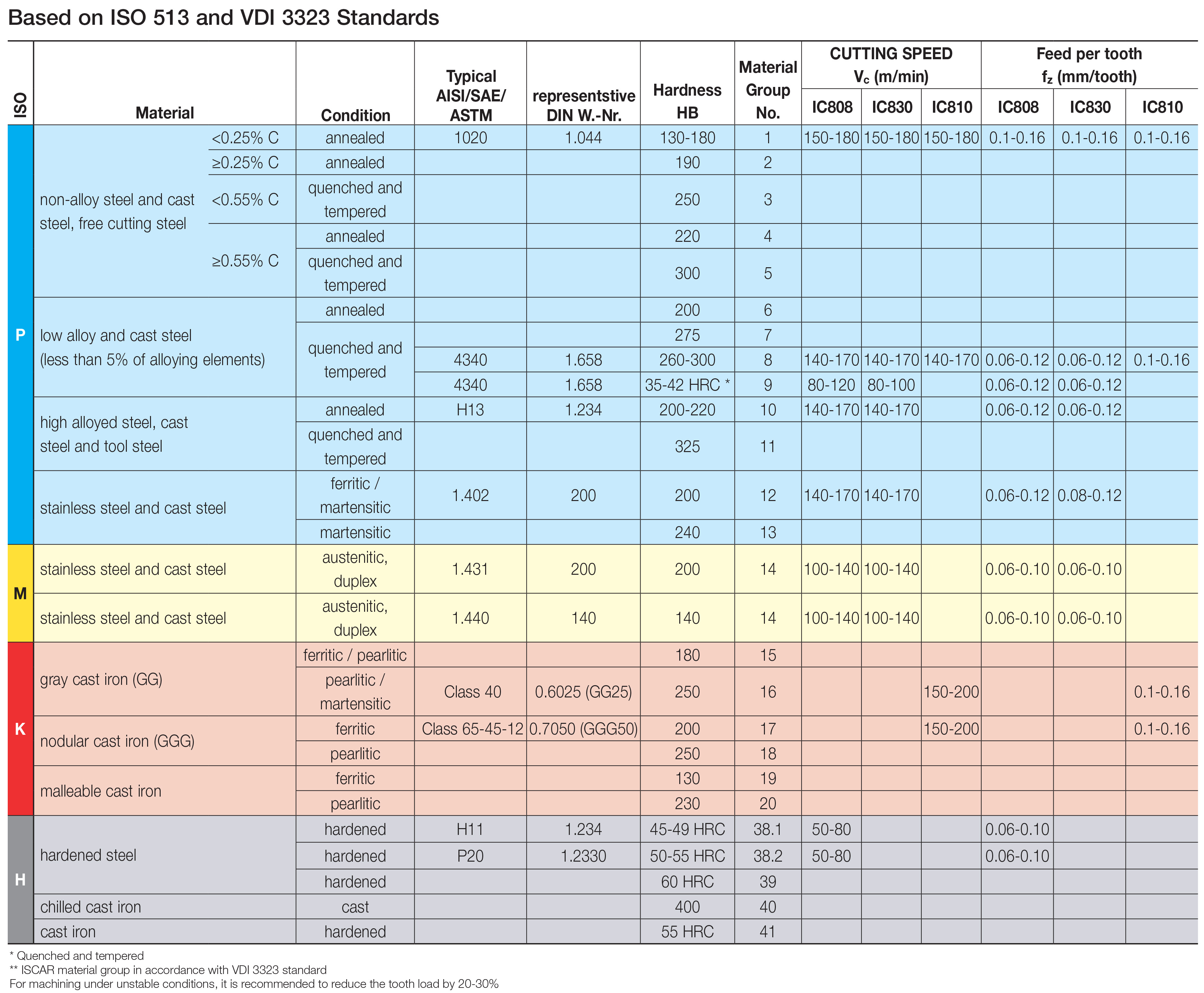

| Remarks | For alternative torx hand driver and cutting conditions click on More Info. |
Shipping Info
Package Weight
106
