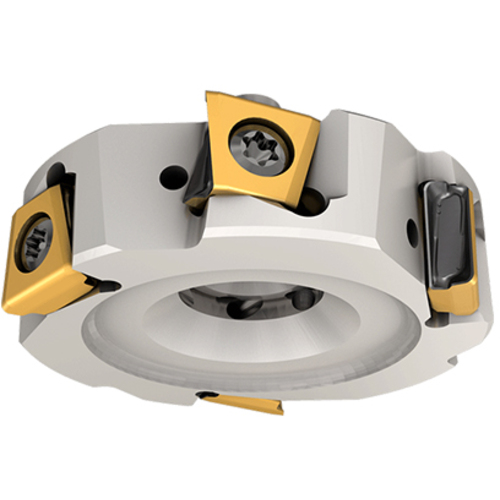

SD D040-07-SP17-T490-05
| Cutting Diameter (DC) | 1.563″ | Flute Count (NOF) | 10 |
| Peripheral Effective Cutting Edge Count (ZEFP) | 5 | Overall Length (OAL) | 0.413″ |
| Depth of Cut Maximum (APMX) | 0.276″ | Master Insert Identification (MIID) | T490 LNHT 0502-PNTN |
| Cutting Depth Maximum (CDX) | 0.443″ | Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | |
| Connection Diameter Machine Side (DCONMS) | 0.386″ | Tool Type | Double-sided slotting cutters |
| Hub Diameter (DHUB) | 0.669″ | Measurement Type | Inch |
| Cutting Width (CW) | 0.276″ | Body Material | Steel |
Product Features
| Family Description | Interchangeable T-SLOT with SP connection carrying T490 0502 PNTN inserts with 2 right- and 2 left-hand cutting edges | Country of Origin | Israel |
| Remarks | For alternative torx hand driver and cutting conditions click on More Info. |
Shipping Info
Package Weight
12
