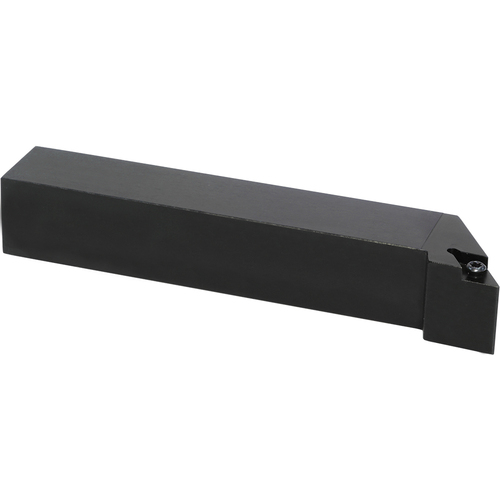

SDJCL 2525M11 INDEX TURN
Turning Toolholder; 150 mm OAL × 25 mm Shank Height × 25 mm Shank Width × 23 mm LH ; Left Hand ; Steel ; Series SDJC

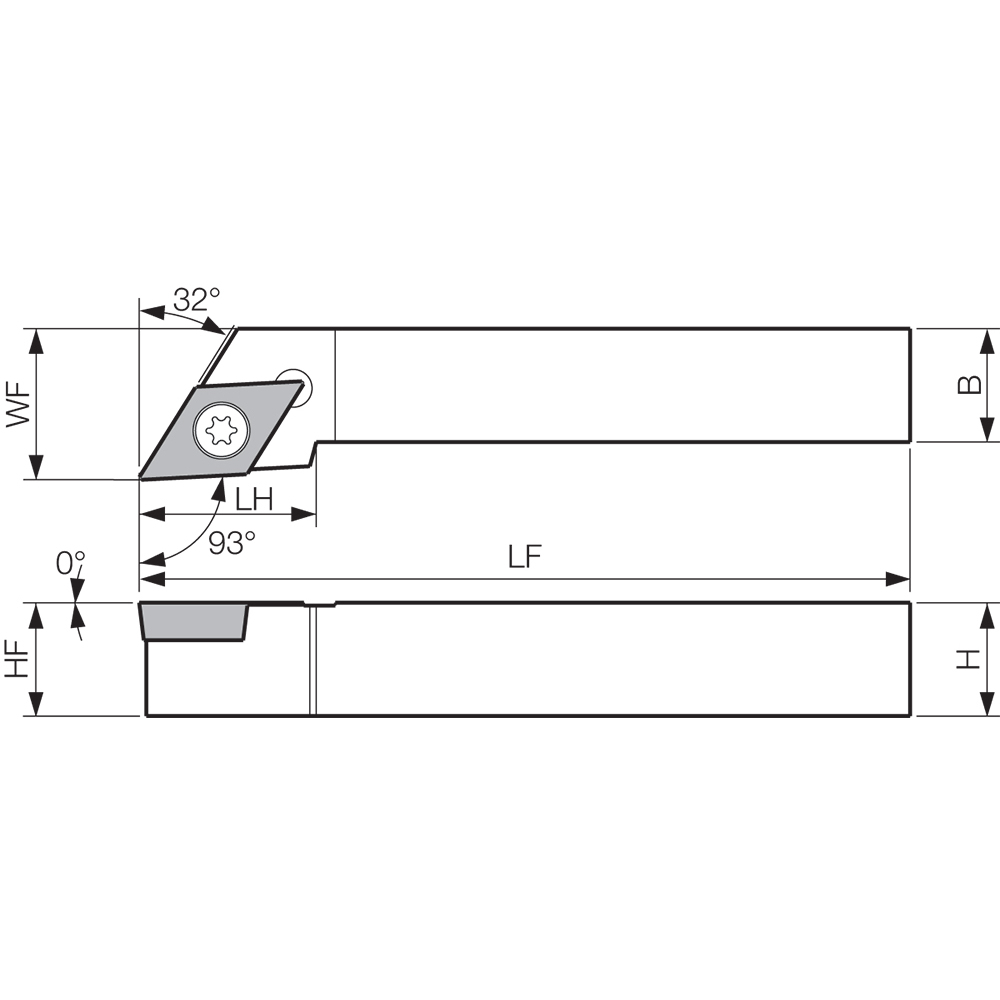

| Shank Height (H) | 25 mm | Master Insert Identification (MIID) | DCGT325… | DCMX325… | DCMT325… | DCET325… | DCGW325… | DCMW325… |
| Shank Width (B) | 25 mm | Application | Swiss | External Turning | Copying |
| Overall Length (OAL) | 150 mm | Body Material | Steel |
| Head Length (LH) | 23 mm | Clamping System | Screw Clamp |
| Inscribed Circle Diameter (IC) | 9.53 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Series/List # | SDJC |
Product Features
| Family Description | Alternate Manufacture # SDJCL2525M11 | Country of Origin | Japan |
Shipping Info
Package Weight
1.6513
