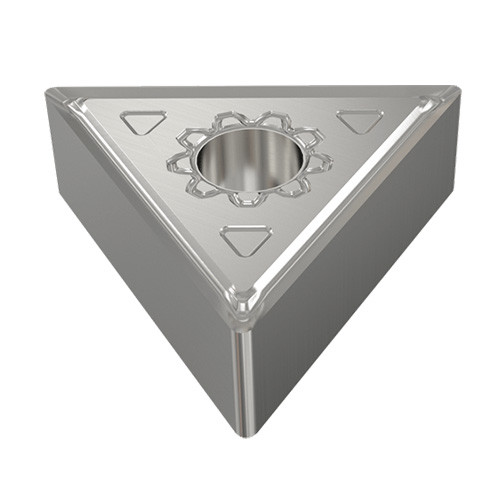

TNMG 332-F3S IC806
| Applicable Material | | Super-Alloys / Titanium | | Grade | IC806 |
| Application | | Ext. 60° Triangle 60° Approach | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle 93° Approach | Ext. 60° Triangle Facing | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | | Tool Type | Turn Negative Inserts |
| Insert Style | TNMG | Min D.O.C. | 0.004″ |

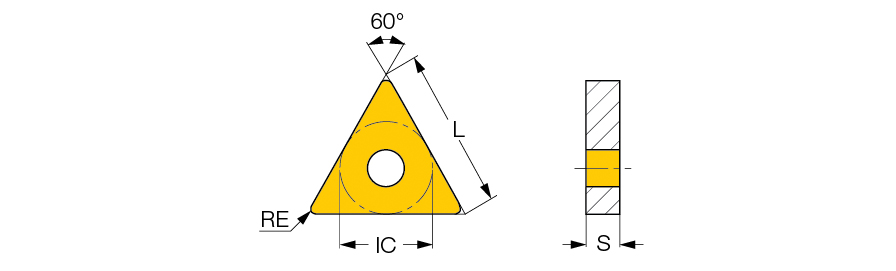

| Corner Radius (RE) | 0.0315″ | Depth of Cut Maximum (APMX) | 0.059″ |
| Insert Size | 332 | Min. Turning Feed (ft(min)) | 0.00393 ″/rev |
| Cutting Edge Length (L) | 0.65″ | Max. Turning Feed (ft(max)) | 0.01574 ″/rev |
| Insert Thickness (S) | 0.187″ | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | AlTiN "SUMO TEC" |
Product Features
| Family Description | Double-sided 60° triangular inserts for titanium and heat resistant materials for finishing applications | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.019
