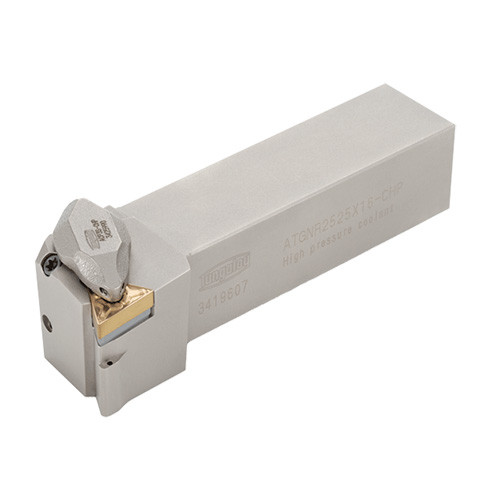

ATGNR123-CHP
Turning Toolholder; 4-1/2″ OAL × 3/4″ Shank Height × 3/4″ Shank Width × 2.17″ LH ; Right Hand ; Steel

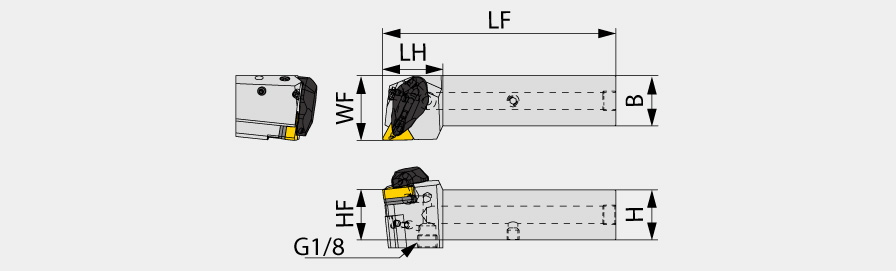

| Shank Height (H) | 3/4″ | Master Insert Identification (MIID) | TNMG160408 |
| Shank Width (B) | 3/4″ | Application | | For Triangular insert | |
| Overall Length (OAL) | 4-1/2″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 4-1/2″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 2.17″ | Body Material | Steel |
| Functional Width (WF) | 1″ | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features
| Family Description | Double clamping tool holders-91 deg approach angle.@For negative triangle insert. High-pressure coolant capability with tube and direct connections. | Country of Origin | JAPAN |
| Remarks | Torque: Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
0.000
