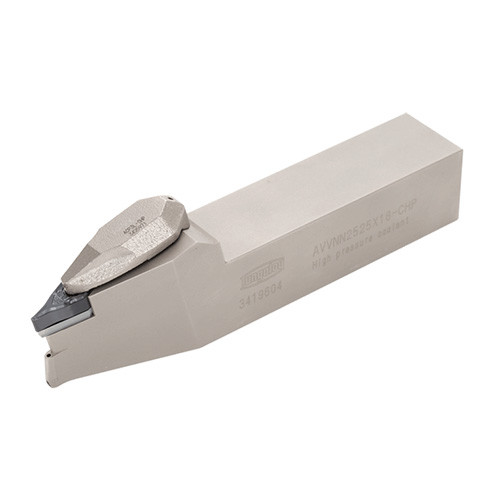

AVVNN163-CHP
Turning Toolholder; 6″ OAL × 1″ Shank Height × 1″ Shank Width × 1.18″ LH ; Neutral ; Steel

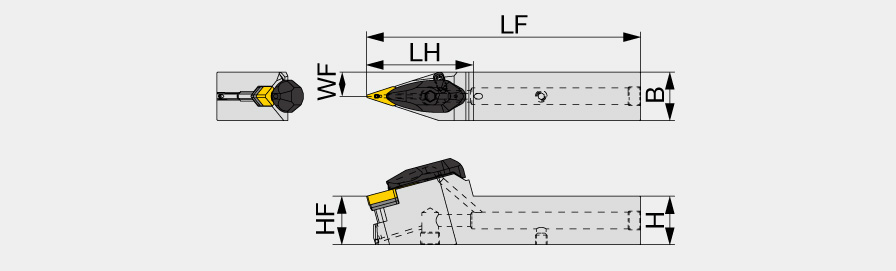

| Shank Height (H) | 1″ | Master Insert Identification (MIID) | VNMG160408 |
| Shank Width (B) | 1″ | Application | | For 35deg Rhombic insert | |
| Overall Length (OAL) | 6″ | Rake Angle Axial (GAMP) | -15 Degrees |
| Functional Length (LF) | 6″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 1.18″ | Body Material | Steel |
| Functional Width (WF) | 1-1/4″ | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Neutral | Measurement Type | Inch |
Product Features
| Family Description | Double clamping tool holders-72.5£°approach angle. @For negative 35£°or 25£°rhombic insert. High-pressure coolant capability with tube and direct connections. | Country of Origin | JAPAN |
| Remarks | Torque: Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
0.000
