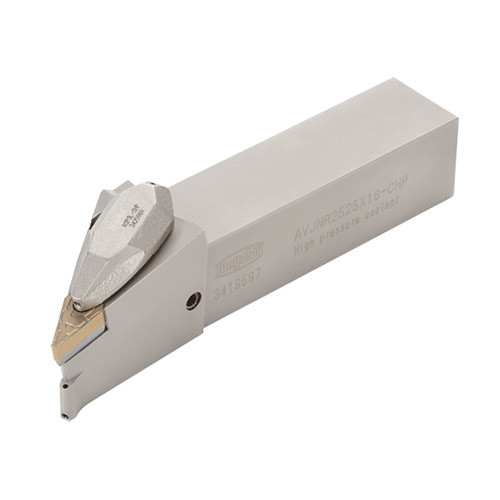

AVJNL123-CHP
Turning Toolholder; 4-1/2″ OAL × 3/4″ Shank Height × 3/4″ Shank Width × 1.97″ LH ; Left Hand ; Steel

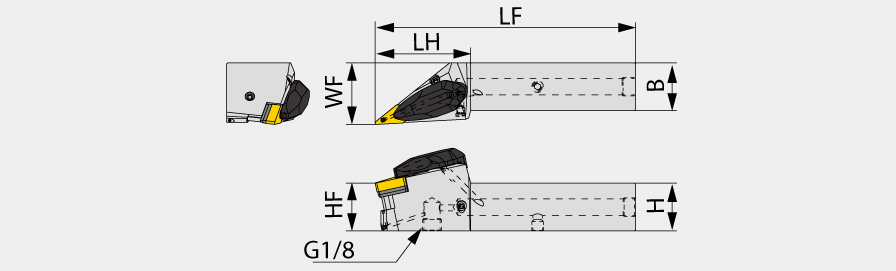

| Shank Height (H) | 3/4″ | Master Insert Identification (MIID) | VNMG160408 |
| Shank Width (B) | 3/4″ | Application | | For 35deg Rhombic insert | |
| Overall Length (OAL) | 4-1/2″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 4-1/2″ | Rake Angle Radial (GAMF) | -12 Degrees |
| Head Length (LH) | 1.97″ | Body Material | Steel |
| Functional Width (WF) | 1″ | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
Product Features
| Family Description | Double clamping tool holders-93£°approach angle. @For negative 35£° or 25£° rhombic insert. High-pressure coolant capability with tube and direct connections. | Country of Origin | JAPAN |
| Remarks | Torque: Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
0.000
