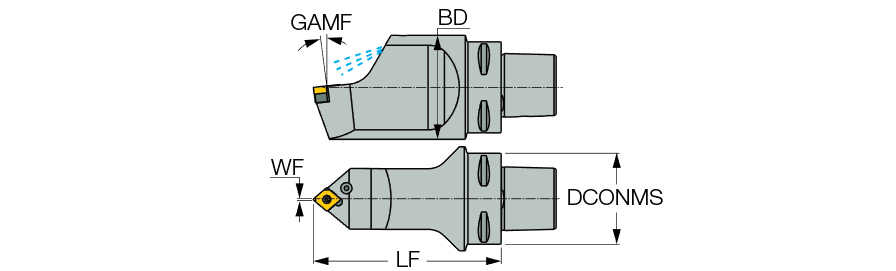

| Functional Length (LF) | 5.118″ | Rake Angle Radial (GAMF) | 6 Degrees |
| Functional Width (WF) | 0.02″ | Body Diameter (BD) | 2.835″ |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Weight of Item (WT) | 1.1 lbs |
| Inscribed Circle Diameter (IC) | 1/2″ | Body Material | Steel |
| Cutting Direction (HAND) | Neutral | Tool Type | Tapered Shank Turning Tools |
| Master Insert Identification (MIID) | CNMG 4.. | Measurement Type | Inch |
| Coolant Supply Property (CSP) | Coolant Thru | Style | SCLCL08-3A |
| Application | | Ext. 80° Diamond 52° Approach | |

Product Features
| Family Description | Lever lock tools with CAMFIX (ISO 26623-1 standard) exchangeable shanks, for 80° negative rhombic inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
6.033
