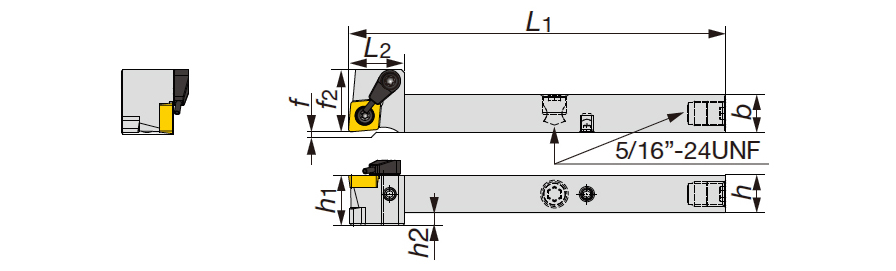

JSCL2CR1212X09-CHP
Turning Toolholder; 120 mm OAL × 12 mm Shank Height × 12 mm Shank Width × 18 mm LH ; Right Hand ; Steel
| Shank Height (H) | 12 mm | Master Insert Identification (MIID) | CCGT09T302 |
| Shank Width (B) | 12 mm | Application | | For 80deg Rhombic insert | For Miniature machining | Posi,L style, 95deg Approach | |
| Overall Length (OAL) | 120 mm | Body Material | Steel |
| Functional Length (LF) | 120 mm | End Chamfer Angle (ECA) | 95 Degrees |
| Head Length (LH) | 18 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 0 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Style | SCLCL08-3A |
Product Features

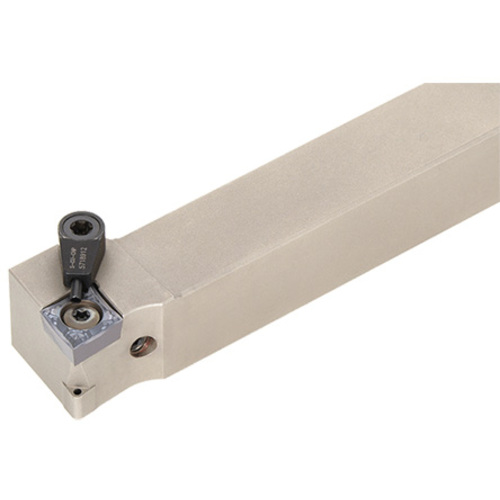

| Family Description | No-offset Screw-on toolholder for positive 80deg rhombic inserts with high pressure coolant channels. Compatible to the direct internal coolant supply system without the use of external coolant hose. | Country of Origin | Japan |
| Remarks | The right hand insert (R) is used for the left hand toolholders (L), and the left hand insert (L) is used for the right hand toolholders (R). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.915
