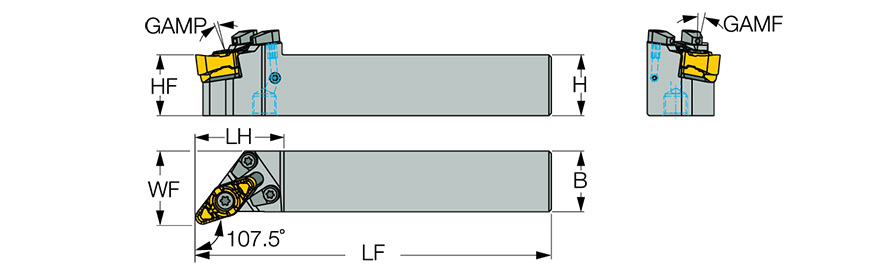

| Shank Height (H) | 25 mm | Application | | Ext. 35° Diamond 107.5° Approac | |
| Shank Width (B) | 25 mm | Rake Angle Axial (GAMP) | 7 Degrees |
| Functional Length (LF) | 146.34 mm | Rake Angle Radial (GAMF) | 6 Degrees |
| Head Length (LH) | 36.3 mm | Body Material | Steel |
| Functional Width (WF) | 30.03 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | VNGU 22.. |
Product Features

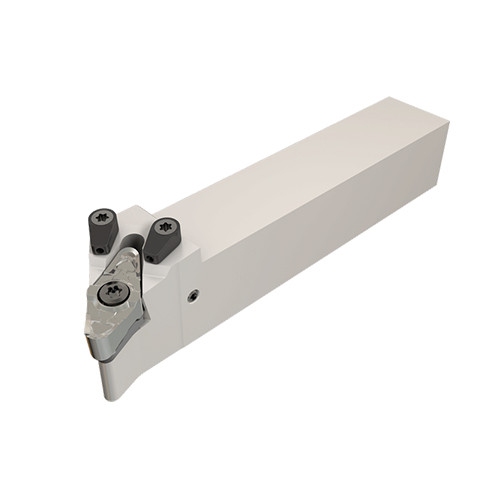

| Family Description | 107.5° lead angle screw lock tools with channels for high-pressure coolant carrying 35° diamond inserts. | Country of Origin | Israel |
| Remarks | For more details, click on More Info |
Shipping Info
Package Weight
1.698
