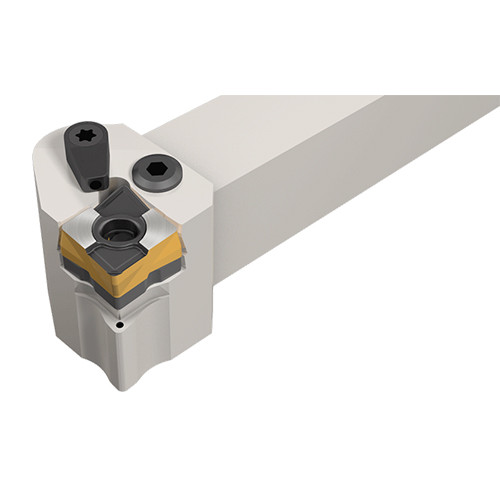

PCLXR 2525M-12X-JHP
Turning Toolholder; 150 mm OAL × 25 mm Shank Height × 25 mm Shank Width × 25 mm LH ; Right Hand ; Steel

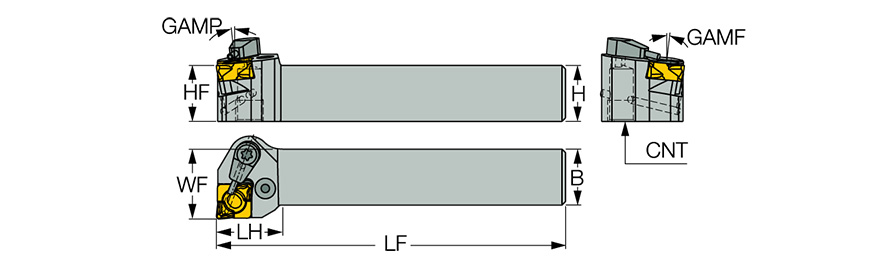

| Shank Height (H) | 25 mm | Master Insert Identification (MIID) | CXMG 12... |
| Shank Width (B) | 25 mm | Application | | Ext. 80° Diamond 95° Approach | |
| Overall Length (OAL) | 150 mm | Rake Angle Axial (GAMP) | 6 Degrees |
| Functional Length (LF) | 150 mm | Rake Angle Radial (GAMF) | 6 Degrees |
| Head Length (LH) | 25 mm | Body Material | Steel |
| Functional Width (WF) | 32 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 12.5 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Style | SCLCL08-3A |
Product Features
| Family Description | Lever lock tools with channels for high-pressure coolant carrying CXMG 80° rhombic inserts. | Country of Origin | Israel |
| Remarks | For more details, click on More Info |
Shipping Info
Package Weight
1.695
