| Applicable Material | | Cast Iron | | Grade | IC5010 |
| Application | | High Feed and Diverse Turning Direction Applicatio | | Fixing Hole Diameter (D1) | 0.213″ |
| Insert Style | Q3-M | Tool Type | Turn Negative Inserts |

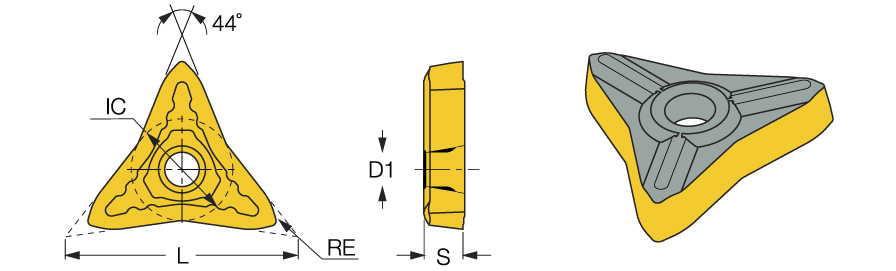

| Corner Radius (RE) | 0.0315″ | Min D.O.C. | 0.02″ |
| Insert Size | CMT1 | Depth of Cut Maximum (APMX) | 0.295″ |
| Cutting Edge Length (L) | 1.441″ | Min. Turning Feed (ft(min)) | 0.00787 ″/rev |
| Insert Thickness (S) | 0.242″ | Max. Turning Feed (ft(max)) | 0.04724 ″/rev |
| Inscribed Circle Diameter (IC) | 0.63″ | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
Product Features

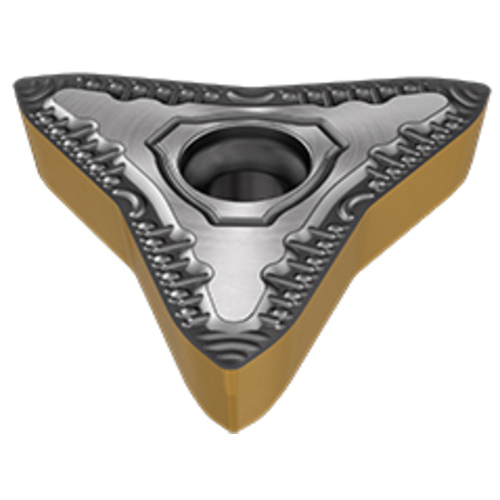

| Family Description | High feed inserts with 3 reinforced cutting edges and positive flank for roughing applications, enable diverse directions machining | Country of Origin | Israel |

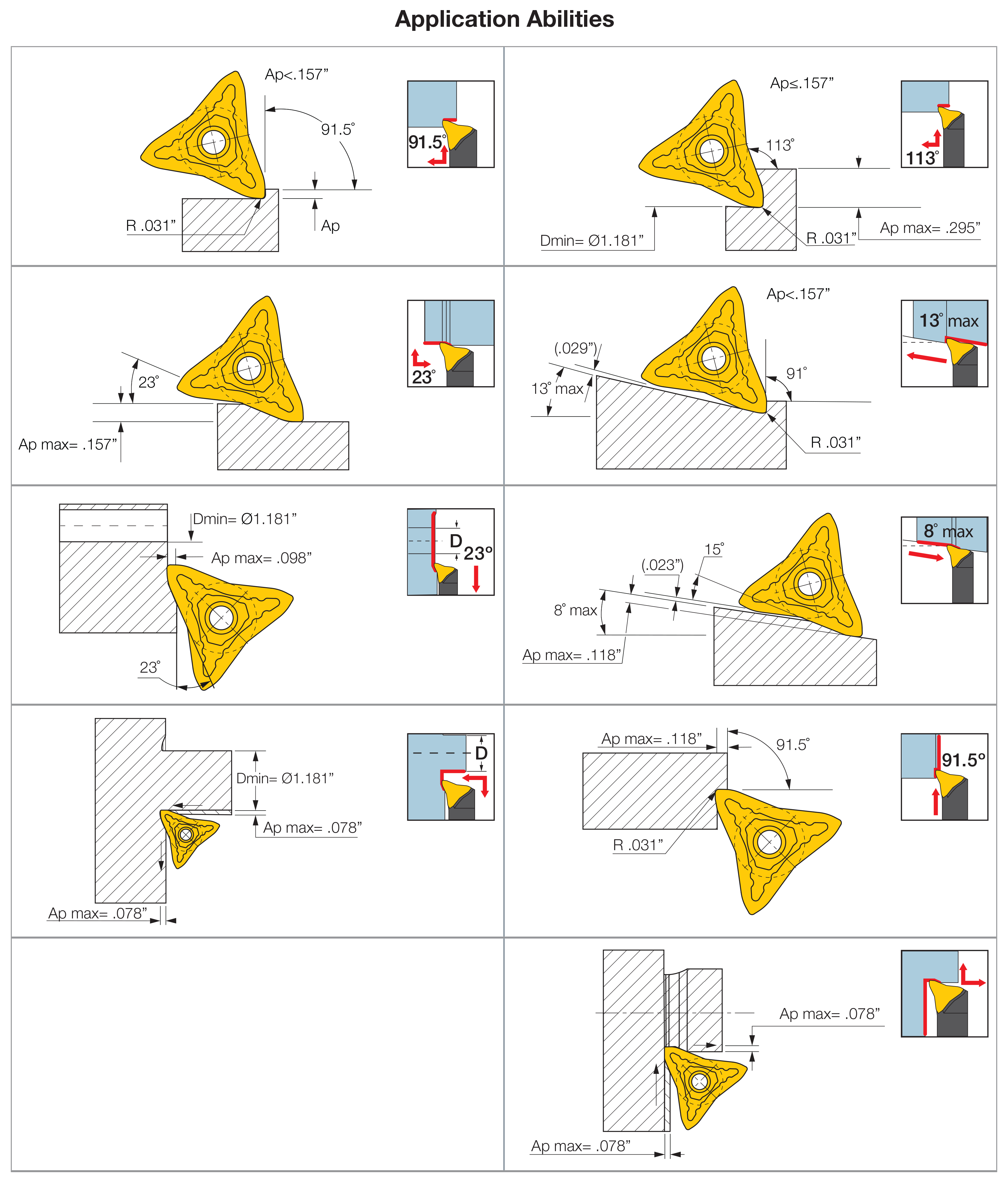

| Remarks | Machining Data Forward Machining: Ap (Inch)=0.059-0.295 , f (Inch/rev)=0.0118-0.0236 Machining Data Backward Machining: Ap (Inch)=0.020-0.157 , f (Inch/rev)=0.0079-0.0472 For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
34.8
