| Applicable Material | | Cast Iron | | Grade | IC5100 |
| Application | | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Corner Radius (RE) | 0.0315″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.2756″ | Tool Type | Double sided Inserts |
| Inscribed Circle Diameter (IC) | 0.413″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Thickness (S) | 0.226″ | Number of Cutting Edges | 8 |
| Wiper Edge Length (BS) | 0.063″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 88 Degrees | Body Material | Carbide |
| Coating | TiCN+Al2O3 |
Product Features

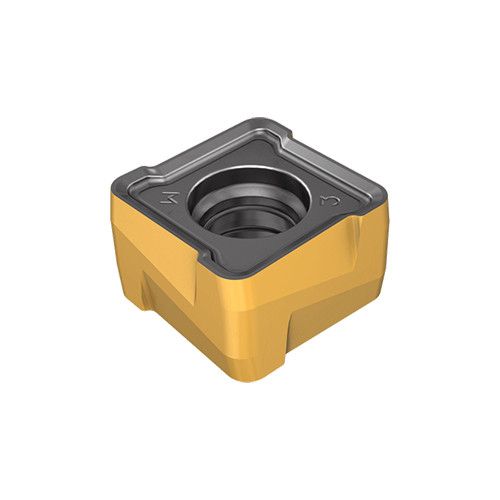

| Family Description | Double-Sided Square Inserts with 8 Cutting Edges | Country of Origin | Israel |
Shipping Info
Package Weight
0.017
