MVLNL 2020K16 INDEX TURN

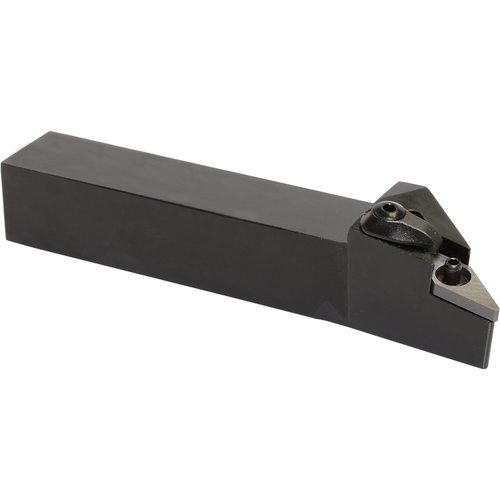

Turning Toolholder; 125 mm OAL × 20 mm Shank Height × 20 mm Shank Width × 38 mm LH ; Left Hand ; Steel ; Series MVLN
| Shank Height (H) | 20 mm | Application | External Turning | Copying |
| Shank Width (B) | 20 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Overall Length (OAL) | 125 mm | Rake Angle Radial (GAMF) | -9 Degrees |
| Head Length (LH) | 38 mm | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 9.53 mm | Clamping System | Multi-Lock Clamp and Lock Pin |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | VN_A33… | VN_G33… | VN_M33... | Series/List # | MVLN |
Product Features
| Family Description | Alternate Manufacture # MVLNL2020K16 | Country of Origin | Japan |
Shipping Info
Package Weight
.9455
