MVVNN 2020K16 INDEX TURN

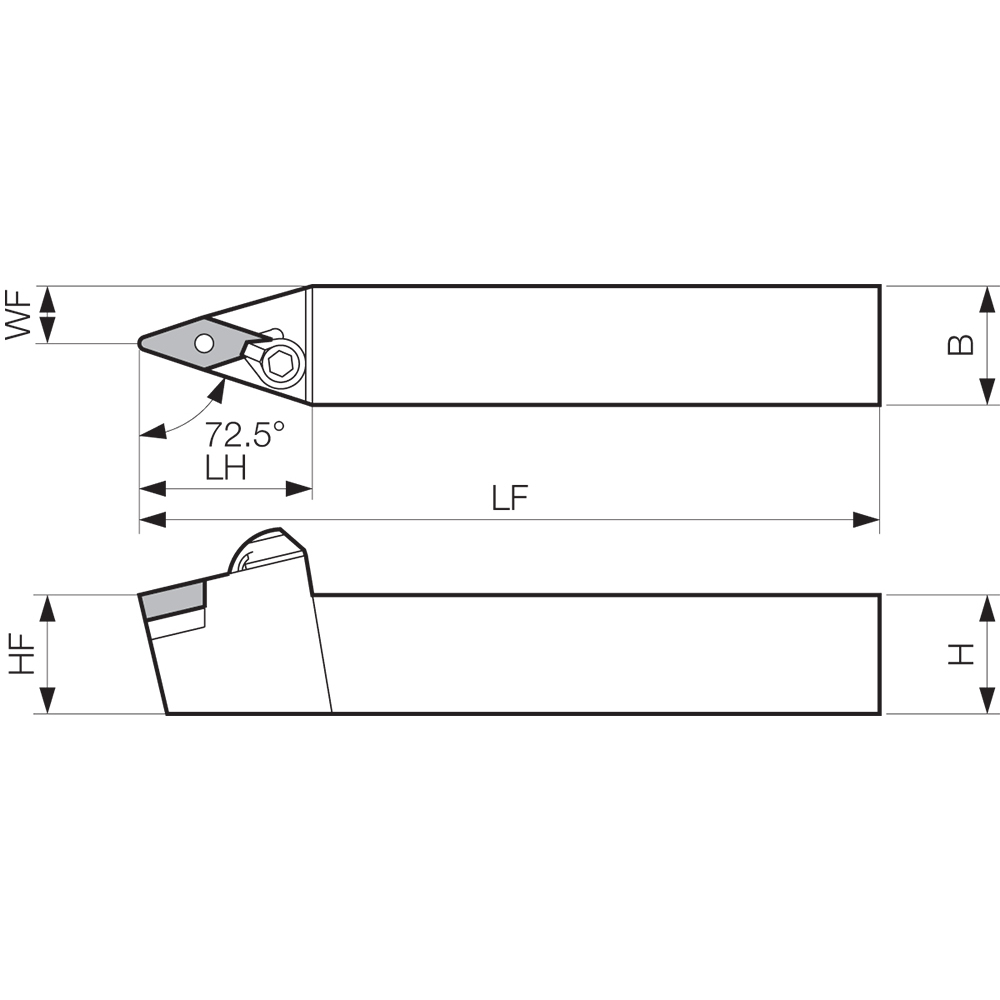

Turning Toolholder; 125 mm OAL × 20 mm Shank Height × 20 mm Shank Width × 39 mm LH ; Neutral ; Steel ; Series MVVN
| Shank Height (H) | 20 mm | Application | External Turning | Copying |
| Shank Width (B) | 20 mm | Rake Angle Axial (GAMP) | -11 Degrees |
| Overall Length (OAL) | 125 mm | Body Material | Steel |
| Head Length (LH) | 39 mm | Clamping System | Multi-Lock Clamp and Lock Pin |
| Inscribed Circle Diameter (IC) | 9.53 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Neutral | Series/List # | MVVN |
| Master Insert Identification (MIID) | VN_A33… | VN_G33… | VN_M33... |
Product Features
| Family Description | Alternate Manufacture # MVVNN2020K16 | Country of Origin | Japan |
Shipping Info
Package Weight
.8880
