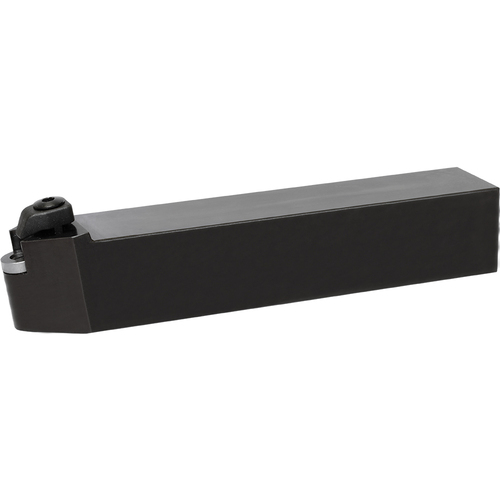

CRDNN 3225P09A INDEX TURN
Turning Toolholder; 170 mm OAL × 32 mm Shank Height × 25 mm Shank Width × 29 mm LH ; Neutral ; Steel ; Series CRDN

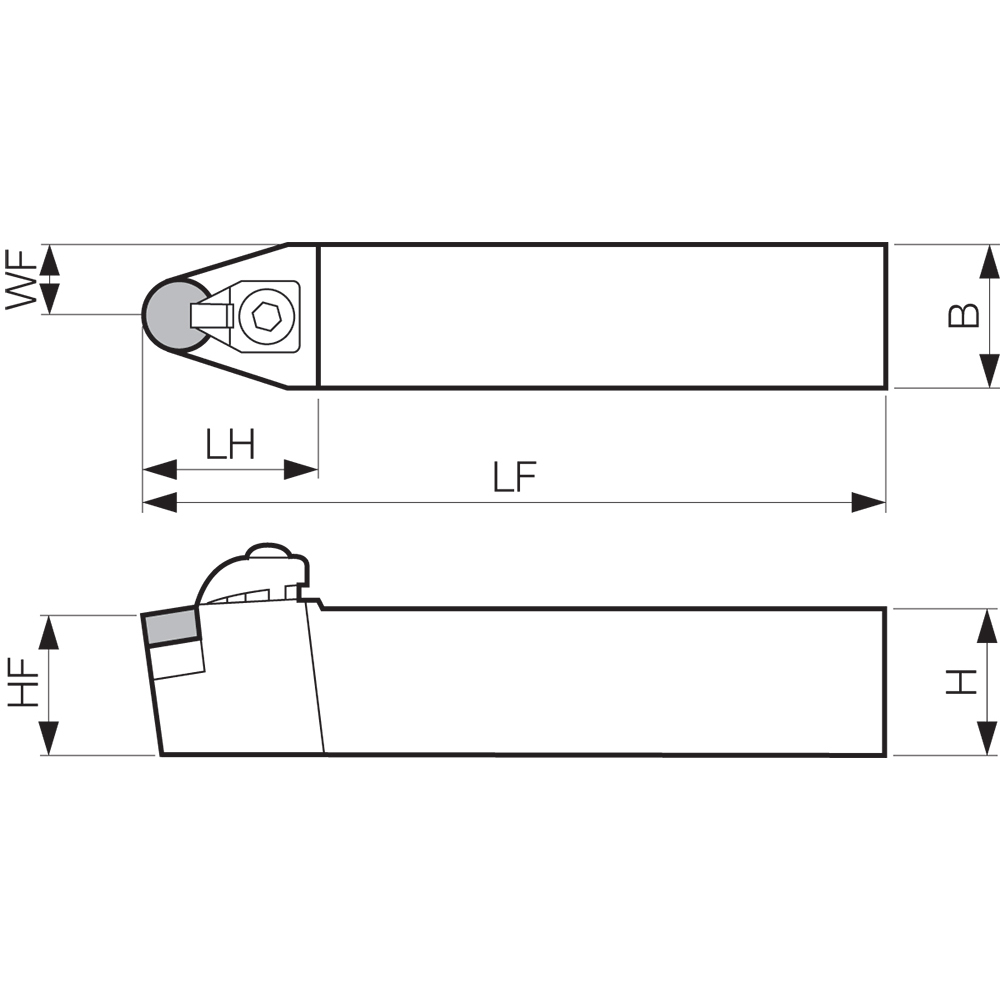

| Shank Height (H) | 32 mm | Application | External Turning | Copying |
| Shank Width (B) | 25 mm | Rake Angle Axial (GAMP) | -8.5 Degrees |
| Overall Length (OAL) | 170 mm | Body Material | Steel |
| Head Length (LH) | 29 mm | Clamping System | Top Clamp |
| Inscribed Circle Diameter (IC) | 9.53 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Neutral | Series/List # | CRDN |
| Master Insert Identification (MIID) | RNM32… |
Product Features
| Family Description | Alternate Manufacture # CRDNN3225P09A | Country of Origin | Japan |
Shipping Info
Package Weight
2.375
