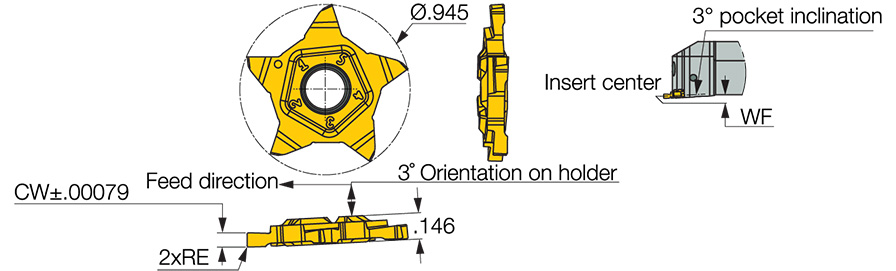

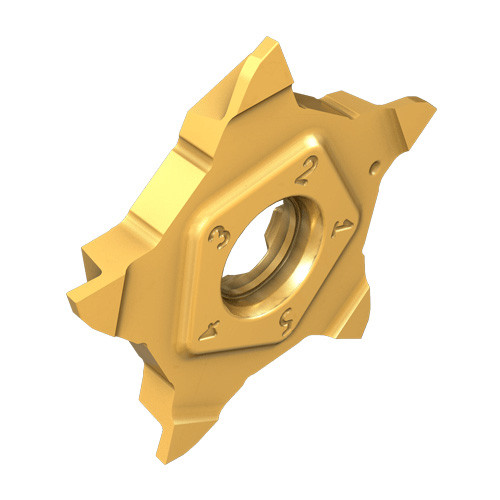

PENTA 24N300NF02RS-SL IC808G
Parting Off Insert; 0.118″ CW × 0.0079″ Corner Radius ; Carbide ; TiAlN+AlTiN+TiN ; IC808G

| Cutting Width (CW) | 0.118″ | Max. Grooving Feed (fg(max)) | 0.0055 ″/rev |
| Corner Radius (RE) | 0.0079″ | Min. Grooving Feed (fg(min)) | 0.0016 ″/rev |
| Cutting Depth Maximum (CDX) | 0.244″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN+AlTiN+TiN | Functional Width (WF) | 0.006″ |
| Grade | IC808G | Body Material | Carbide |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Parting | | Insert Width (W1) | 0.146″ |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | |

Product Features
| Family Description | Parting and precision grooving pentagonal inserts, for quick and accurate cutting edge indexing. Used for next to high shoulder applications. | Country of Origin | Israel |
| Remarks | For parting and grooving range, click on More Info. |
Shipping Info
Package Weight
10.6
