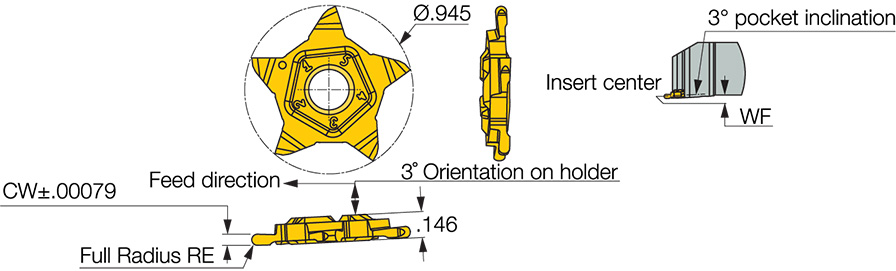

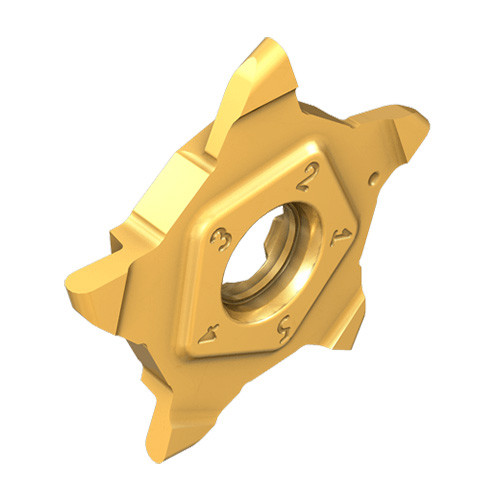

PENTA 24N157NF079RSSL IC808G
Parting Off Insert; 0.062″ CW × 0.0311″ Corner Radius ; Carbide ; TiAlN+AlTiN+TiN ; IC808G
| Cutting Width (CW) | 0.062″ | Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0311″ | Max. Grooving Feed (fg(max)) | 0.0039 ″/rev |
| Cutting Depth Maximum (CDX) | 0.118″ | Min. Grooving Feed (fg(min)) | 0.0016 ″/rev |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN+AlTiN+TiN | Measurement Type | Inch |
| Grade | IC808G | Body Material | Carbide |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | | Insert Width (W1) | 0.146″ |
Product Features
| Family Description | Precision grooving inserts with 5 cutting edges for quick and accurate cutting edge indexing, for next to high shoulder applications. | Country of Origin | Israel |
| Remarks | Recessing is possible only with .094 and wider inserts. For parting and grooving range, click on More Info. |
Shipping Info
Package Weight
1.2
